Terminal Machine

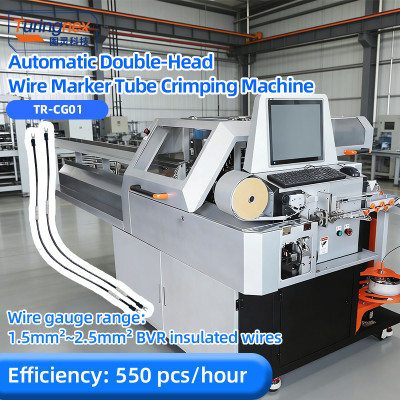

TR-CG01 Automatic Double-Head Wire Marker Tube Crimping Machine

TR-20HMG Automatic Tube-Feeding Bulk Terminal Crimping Machine.This machine enables continuous automatic processing of wire cutting, stripping, twisting, double-end tube feeding, and single-end tube feeding.

Applicable to AWG26#~AWG14# wires, it adopts a modular design. The wire feeding device, crimping device, tool rest device, tube feeding equipment, heating tube device, and wire take-up device can be quickly disassembled individually for convenient and fast maintenance.

TR-YH01 Fully Automatic Sheathed Wire Double-End Tin Dipping Machine.Functions:Wire Cutting, Stripping, Twisting, Tin Dipping.

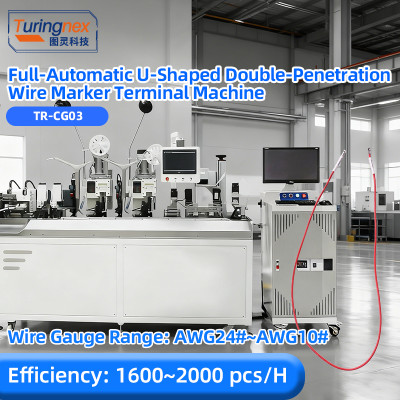

TR-CG03 Full-Automatic U-Shaped Double-Penetration Wire Marker Terminal Machine

TR-HY03 Fully Automatic Double-Line Combined Press Three-Penetration Heat-Shrinkable Tube Machine

TR-CK02 Fully Automatic Single-Head Terminal Crimping, Housing Insertion and Sleeve Threading Machine

TR-HY04 Full-Automatic Double-Line Combined Crimping Terminal Machine

TR-120D Fully Automatic Single-Head Tin-Dipping Terminal Machine.Functions:Wire Cutting, Stripping, Terminal Crimping, Wire Twisting, Tin Dipping.

TR-HY02 Full-Automatic Double-Line Combined Crimping & Double Heat-Shrinkable Tube Threading Machine,Wire feeding, wire cutting, wire stripping, tube threading, terminal crimping, heat-shrinkable tube baking

TR-HTX01 Single-head Sheathed Wire Tin-dipping Terminal Machine. Main Functions:Wire cutting, double-end stripping, single-end crimping, single-end twisting and tinning

TR-HT01 Full-Automatic Double-Head Heat Shrink Tubing & Sleeve Terminal Crimping Machine. Integrates wire cutting, stripping, terminal crimping, heat shrink tubing installation (with heating), and sleeve threading.

TR-CK01 Full-Automatic Single-Wire Single-Insertion Terminal Crimping Machine. Machine Functions: Multiple Detection Functions for Front and Rear Wire Cutting, Stripping, Crimping, Housing Insertion, etc.

TR-SZ03 Automatic Bulk Tubular Terminal Machine.Adopts Mitsubishi Servo or Xinje (6 servo motors of the whole machine can be configured as required) and ball screw drive for wire feeding, stripping, twisting, crimping, etc. The positions are very precise, and the movements are connected smoothly, with a speed of up to 2000~3000 pcs/hour;

Mechanical control is simple and convenient, all operated by touch screen. Data adjustment can change stripping and cutting length, cutting depth, crimping position, twisting position, etc., saving time for machine adjustment personnel;

The machine’s automatic detection function can also effectively control the occurrence of defective products, enabling immediate detection and handling; it is a safe, efficient and precise processing machine. (Customization is available as required)

TR-M9 Fully Automatic Round Sheathed Wire Double-End Heat-Shrink Tube Insertion and Connector Housing Machine. Main Functions:Terminal A: Wire Cutting, Outer Sheath Stripping, Inner Insulation Stripping, Wire Straightening, Automatic Color Sorting, Terminal Crimping, Termina
