TR-DW301 Three-in-One Terminal Crimping & Heat-Shrink Tubing Machine
- Model
- TR-DW301
Item specifics
- Power
- AC220V 50/60Hz 20A
- Application
- wire cutting, stripping, terminal crimping
- Compressed Air
- 0.5 MPa
- Contact
- Coco : +86 18666170785
Review
Description
TR-DW301 Three-in-One Terminal Crimping & Heat-Shrink Tubing Machine
Equipment Name：R-DW301 Three-in-One Terminal Crimping & Heat-Shrink Tubing Machine
Power Supply：Single-phase AC200V~242V 50/60Hz 10A

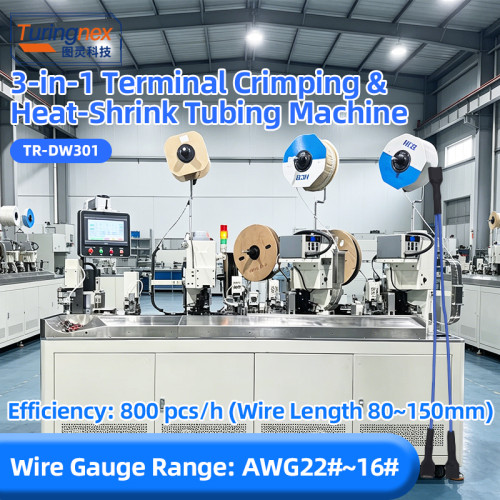

Processing Capacity：Approx. 800 pieces/hour for wire length 80-150mm; approx. 800 pieces/hour for special wires
Cutting Accuracy：For wire length ≤100mm: Error 0.2+(wire length×0.002)；For wire length >100mm: Error 0.5+(wire length×0.002)
Processing Length：Intermediate insulation retention: 76mm~99999mm
Stripping Length：Front end: 0.5~8.0mm; Rear end: 0.1~10.0mm
Cutter Depth：Max adjustment: 5.50mm, Resolution: 0.01mm
Detection Devices：Low air pressure, wire presence/absence, crimping abnormality, wire feeding abnormality
Compressed Air：0.5 MPa (5kgf/cm²) clean and dry gas
Dimension & Weight：W 800 × D 2600 × H 1800 mm, approx. 900KG

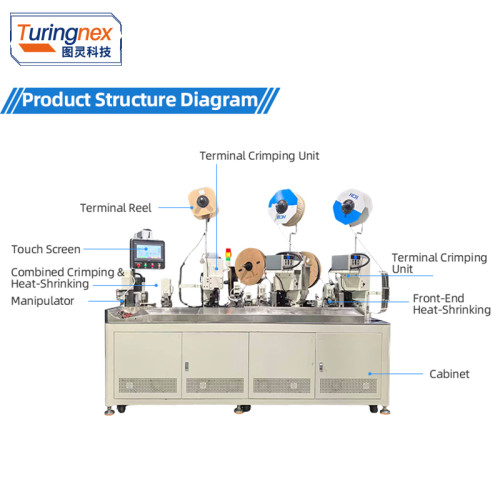

Product Features

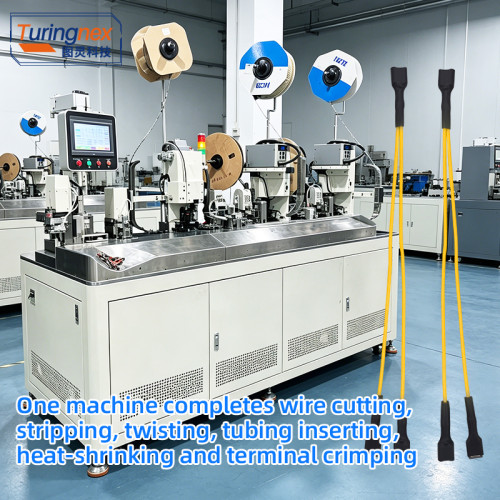

1.The equipment is mainly constructed with branded original components, completing functions such as wire cutting, stripping, and terminal crimping with precise movements and stable performance.

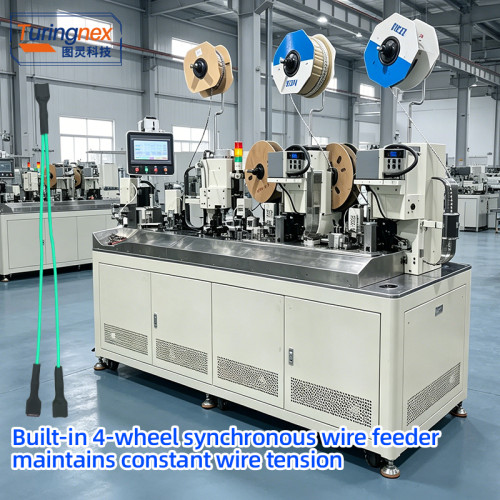

2.The main unit is equipped with a built-in 4-wheel synchronous wire feeder to maintain constant wire tension, and comes with an automatic terminal tape cutting device.

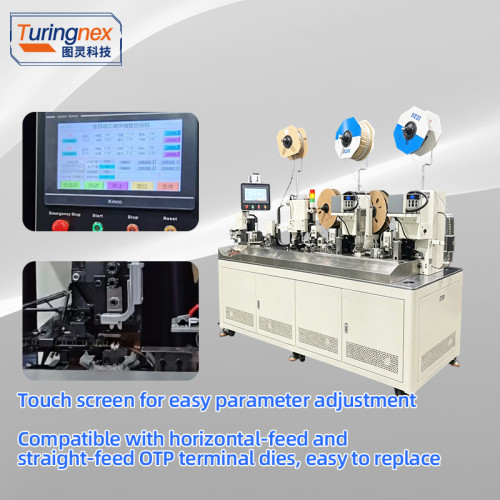

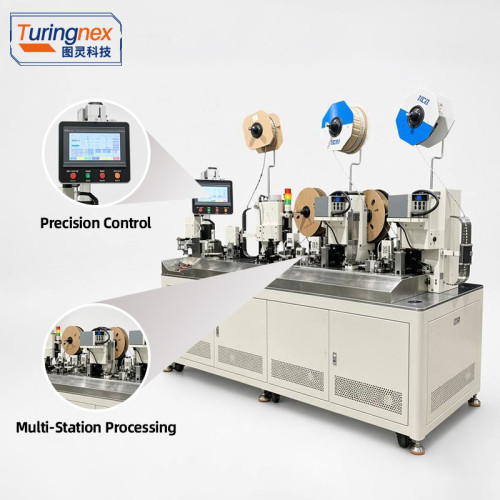

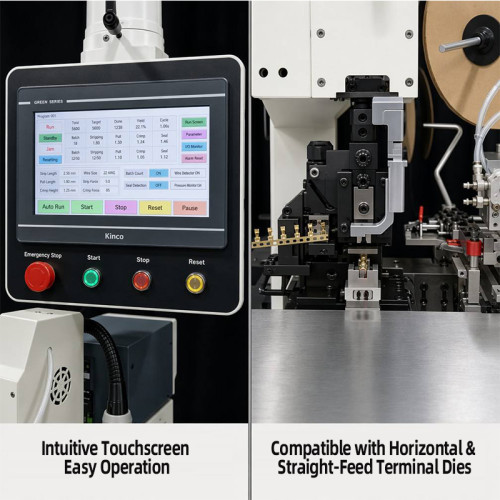

3.Controlled by the main unit's motion control card, with Chinese/English touchscreen for parameter setting, featuring short adjustment time and easy operation.

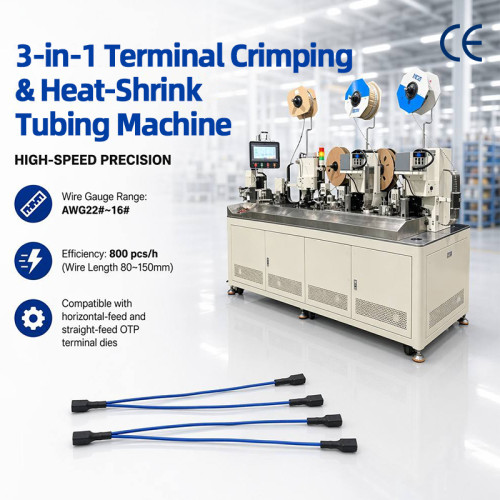

4.Compatible with horizontal-feed and straight-feed OTP terminal dies.
5.Energy-saving, space-saving, and environmentally friendly equipment.
6.Two working modes:

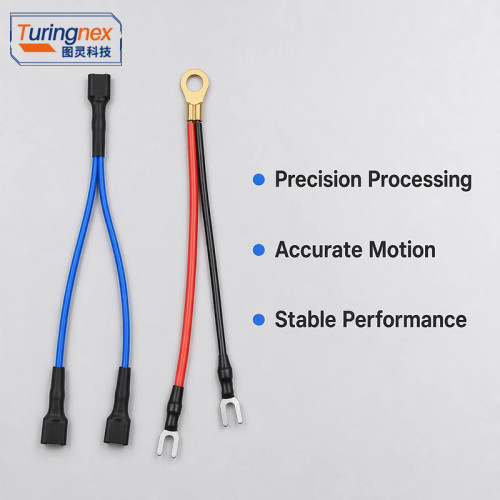

Mode 1: One wire is heat-shrunk with tubing, the other is not, then combined crimping, followed by heat-shrinking tubing on the crimped end.
Mode 2: Two wires are individually heat-shrunk with tubing, then combined crimping and heat-shrinking with an additional layer of tubing.
