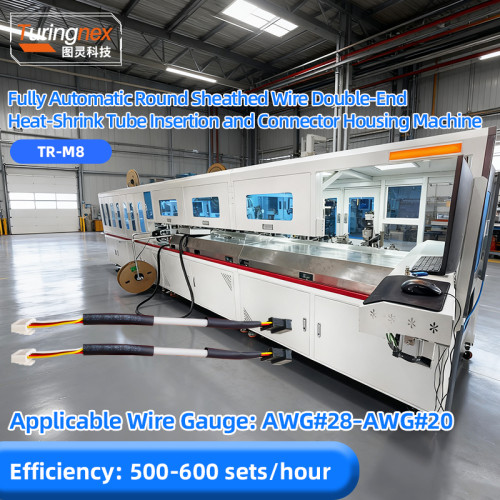

TR-M8 Auto Double-End Crimping Machine for Round Sheathed Wire with Heat Shrink Tube & Housing Insertion
- Model
- TR-M8
Item specifics
- Power
- 50/60HZ 220V Single-phase
- Scope of processing
- AWG#28-AWG#20
- Connector Housing Range
- 2P-10P Universal
- Air Pressure
- 0.6-0.75Mpa (6-7KG/Cubic)
Review
Description
TR-M8 Auto Double-End Crimping Machine for Round
Sheathed Wire with Heat Shrink Tube & Housing Insertion
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Equipment Name | TR‑M8 Fully Automatic Round Sheathed Wire Double‑End Heat‑Shrink Tube Insertion and Connector Housing Machine | |
Power | Single-phase 220V, 50/60Hz. | |
Applicable Wire Gauge | AWG#28‑AWG#20 | |
Size | 4500×2200×1800mm | |
Cutting Length | 150mm‑1000mm | |
Connector Housing Range | 2P‑10P Universal | |
O.D. Range of Heat‑Shrink Tube | O.D. 4mm‑12mm | |
Outer Stripping Range | 28mm‑65mm | |
Inner Stripping Range | 0.5mm‑8mm | |
Cutting Precision | ± (0.2%*L+1) mm | |
Air Pressure | 0.6‑0.75Mpa (6‑7KG/Cubic) | |
Heat‑Shrink Tube Cutting Range | 20mm‑50mm | |
Color Recognition | Computerized CCD Visual Automatic Recognition | |
Detection Devices | CCD Visual Inspection, Air Pressure Detection, Wire Presence/Absence Detection, Stripping Detection, Terminal Detection, Pressure Device Detection, Connector Housing and Terminal Position Detection, Missing Terminal/Tube/Housing Detection, etc. | |
Control Method | Industrial Computer Control, Touchscreen Operation. Mitsubishi PLC Mainboard Control System | |
Wire Payoff System | Computerized Fully Automatic Pre‑feeding Device, Suitable for Spooled Wire, Industry‑Standard 600mm Spool Device | |
Production Capacity | 500‑600 finished sets per hour within 200mm | |
Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical.
We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
