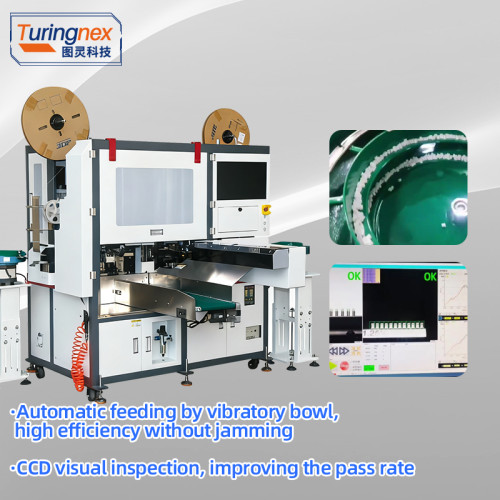

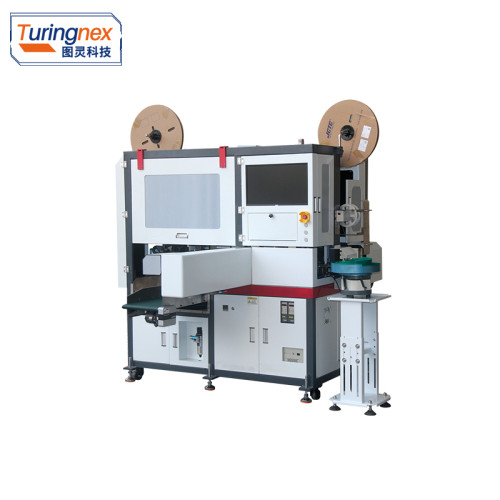

TR-850D Fully Automatic Double-head Rubber Shell Insertion, Stripping and Terminal Crimping Machine
- Model
- TR-850D
Item specifics
- Power
- AC220V/50HZ
- Scope of processing
- AWG32 - AWG18
- Feature
- Stable Performance
- Warranty
- 1year
Review
Description
TR-850D Fully Automatic Double-head Rubber Shell Insertion, Stripping and Terminal Crimping Machine
Power Supply: AC 220V
Dimensions and Weight: 1850×2000×1760mm, 1000kg

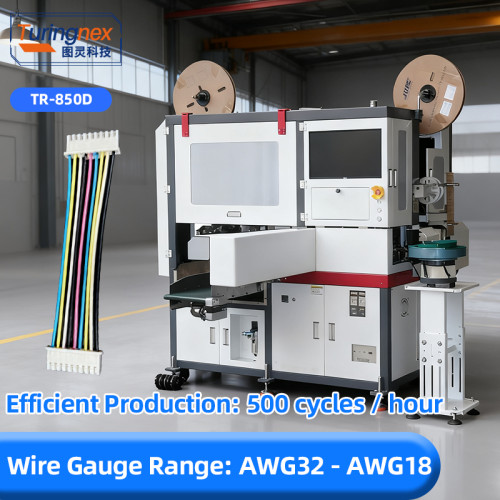

Speed: 500 cycles/hour (12 terminals/cycle) (wire length ≤200mm)
Wire Range: AWG32 - AWG18
Plating Length: 1 - 9mm (special specifications can be customized)
Air Pressure: 0.6 - 0.7MPa

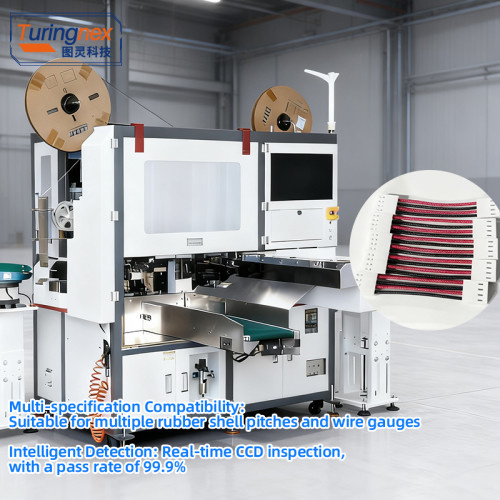

Applicable Shell Pitch: 1.0, 1.25, 1.5, 2.0, 2.54, 3.96mm

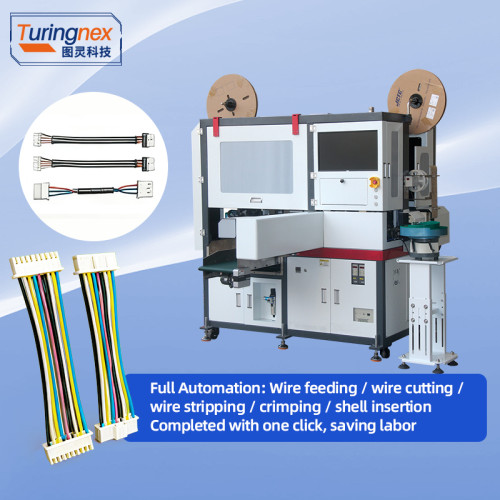

Standard Functions: Wire cutting, double-end stripping, double-end crimping, double-end shell insertion; the rear end can be switched to crimping/twisting, plating solution.
Optional Functions: Wire presence/absence, wire knotting, terminal presence/absence, shell presence/absence, air pressure alarm, motor abnormality, CCD visual inspection.
Detection Function: Double-head crimping and shell: 50mm - 800mm; Single-head crimping and shell: 30mm - 800mm (special specifications can be customized)
