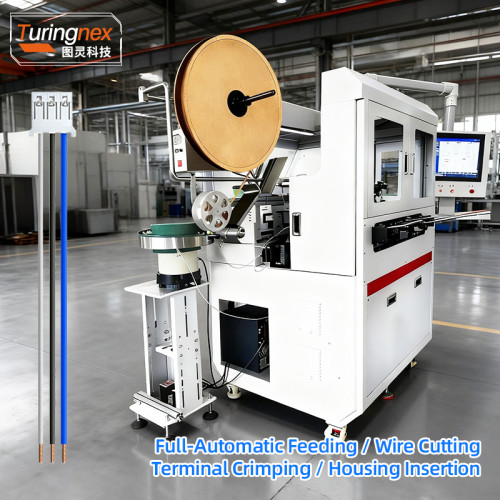

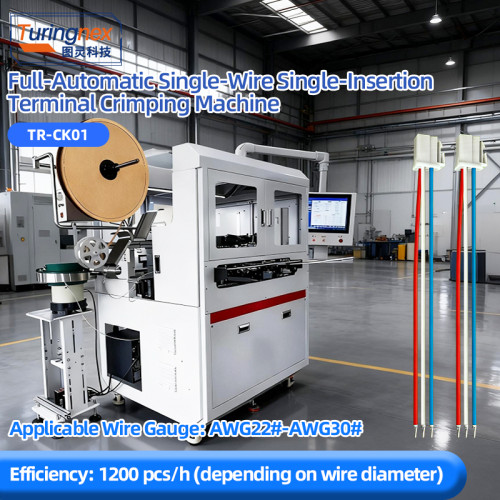

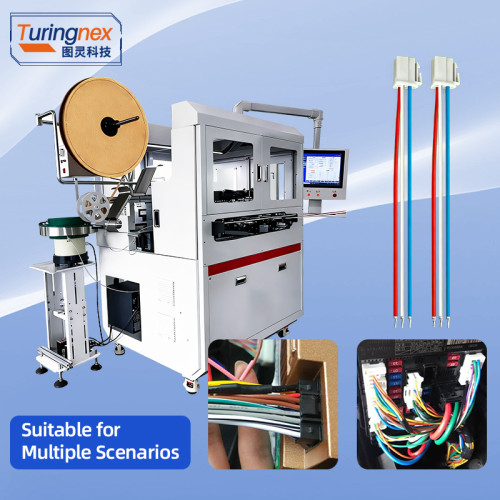

TR-CK01 Full-Automatic Single-Wire Single-Insertion Terminal Crimping Machine
- Model
- TR-CK01
Item specifics
- Power
- 220V 50/60Hz
- Scope of processing
- AWG22#~AWG30# (Customizable)
- Housing Pitch
- 1.0-3.96
- Air Pressure
- 0.4-0.5MPa (Air Consumption Approx. 130~180nL/min)
Review
Description
TR-CK01 Full-Automatic Single-Wire Single-Insertion Terminal Crimping Machine
Power Supply: 220V 50/60Hz
Dimension: 1400x1100x1650mm
Applicable Wire Gauge: AWG22#~AWG30# (Customizable)
Housing Pitch: 1.0-3.96
Cutting Length: 45-1000mm (Single/Double-End Housing Insertion, Crimping)
Cutting Precision: ±1mm (+Set Cutting Length*0.02)
Stripping Length: 0.1-15mm
Crimping Capacity: 2T
Control Method: PLC Motion Controller
Compressed Air: 0.4-0.5MPa (Air Consumption Approx. 130~180nL/min)

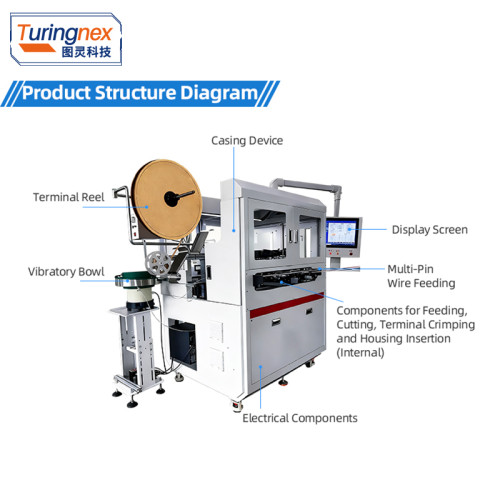

Pay-Off Machine: 18-Axis Pay-Off Rack (Electric Pay-Off Rack) Determined by Customer's Wire
Take-Up Machine: Automatic Conveyor Belt
Operating Temperature: -10℃~45℃ (Recommended 15℃~30℃)

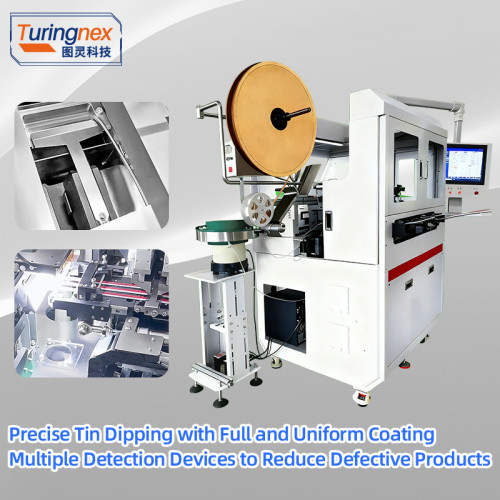

Machine Functions: Multiple Detection Functions for Front and Rear Wire Cutting, Stripping, Crimping, Housing Insertion, etc.
Detection Capability: Detect Presence of Wire, Over-Tight Wire, Wire Knotting, Abnormal Crimping and Stripping, Air Pressure Drop, Presence of Terminal, Whether Terminal is Crimped, Presence of Housing, Whether Housing is Inserted in Place, Terminal Pressure Detection
Processing Speed: 300 pcs/h, if 6P pitch 2.5 with 4 wires simultaneously, it can reach 1200 pcs/h, multiple wires can be processed simultaneously according to wire diameter and housing width
