TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine
- Model
- TR-GD06
Item specifics
- Power
- AC220V/50HZ,
- Application
- terminal crimping machine
- Feature

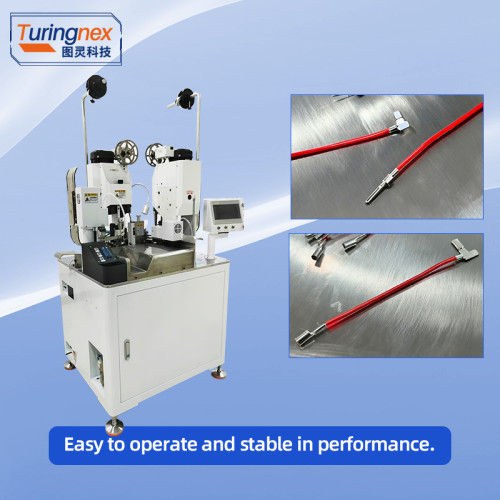

- Stable Performance
- Warranty
- 1year
- Contact
- Coco:+8618666170785
Review
Description

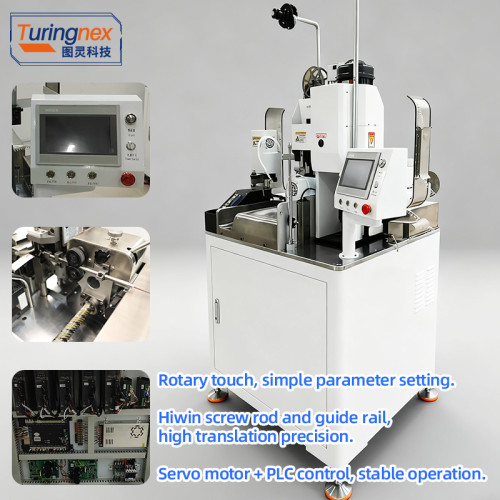

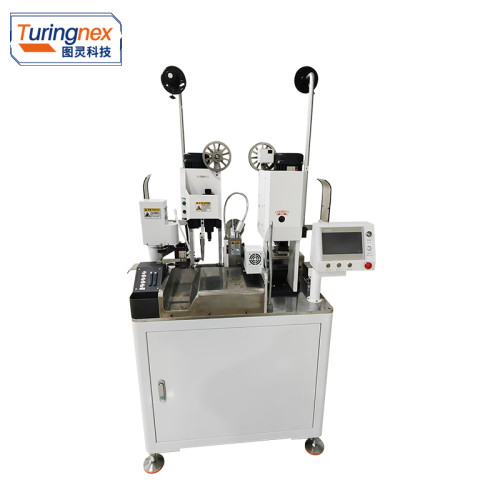

TR - GD06 High - Speed Full - Servo Double - Head Terminal Machine
Dimension and Weight: 1380x750x1580mm, 360kg;
Voltage and Power: AC220V 50Hz, 1.8Kw
Wire Cutting Length: 26mm - 9999mm
Wire Cutting Tolerance: ≥1m, within ±0.02%
Wire Stripping Length: 0.5mm - 35mm (Half - stripping is required when exceeding 12mm)
Wire Cutting Speed: 5500 pieces/h (within 100mm)

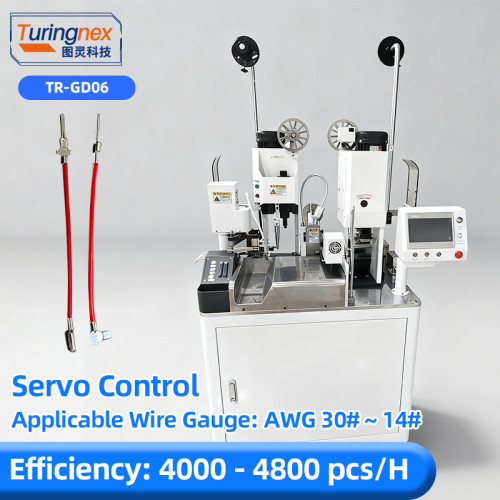

Applicable Wire: AWG30# - 14#
Processing Efficiency: 4000 - 4800 pieces/h (within 30 - 200mm)
Applicable Mould: OTP horizontal mould, straight mould (European - style mould can be customized)
Crimping Pressure: Standard 2.0T, other pressures can be customized
Screw Rod: 4 sets of TBI screw rods
Motor: 5 sets of Mitsubishi servo motors from Japan + 2 sets of stepper motors
Slide Rail: 7 sets of Hiwin slide rails
Bearing: SKF from SwedenCrimping
Pressure: Standard 2.0T, other pressures can be customized

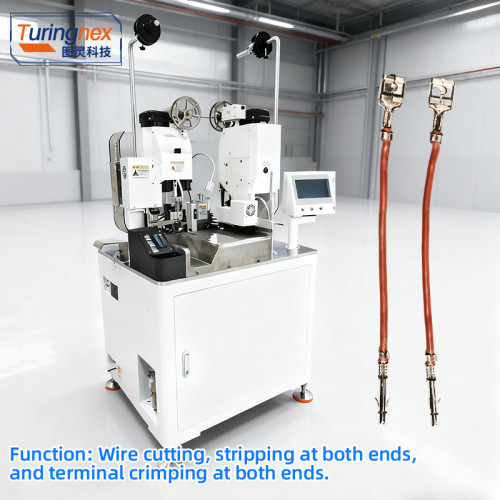

Machine Functions: Wire cutting, stripping at both ends, half - stripping at single end, crimping at single end of single wire, crimping at double ends of single wire
