TR-M9 Fully Automatic Round Sheathed Wire Double-End Heat-Shrink Tube Insertion and Connector Housing Machine
- Model
- TR-M9
Item specifics
- Power
- 50/60HZ 220V Single-phase
- Scope of processing
- AWG#28-AWG#20
- Connector Housing Range
- 2P-10P Universal
- Air Pressure
- 0.6-0.75Mpa (6-7KG/Cubic)
Review
Description
TR-M9 Fully Automatic Round Sheathed Wire Double-End Heat-Shrink Tube Insertion and Connector Housing Machine
Power Supply：50/60HZ 220V Single-phase
Dimensions：4500×2200×1800mm

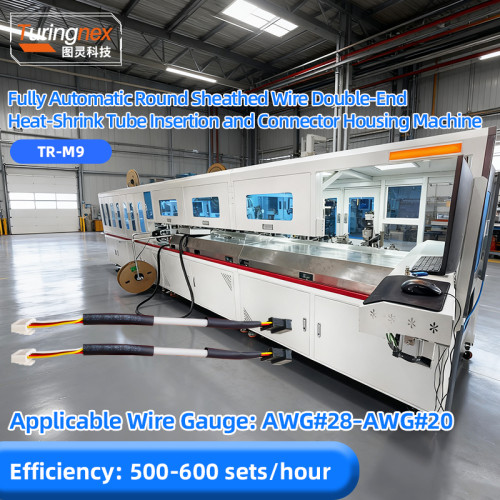

Applicable Wire Gauge：AWG#28-AWG#20
Cutting Length：150mm-1000mm
Connector Housing Range：2P-10P Universal
Outer Diameter Range of Heat-Shrink Tube：Outer Diameter 4mm-12mm
Outer Sheath Stripping Range：28mm-65mm
Inner Insulation Stripping Range：0.5mm-8mm
Cutting Precision：±(0.2%*L+1) mm
Air Pressure：0.6-0.75Mpa (6-7KG/Cubic)
Heat-Shrink Tube Cutting Range：20mm-50mm

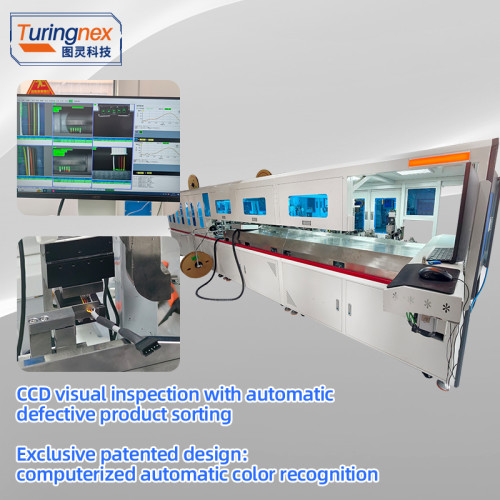

Color Recognition：Computerized CCD Visual Automatic Recognition
Detection Devices：CCD Visual Inspection, Air Pressure Detection, Wire Presence/Absence Detection, Stripping Detection, Terminal Detection, Pressure Device Detection, Connector Housing and Terminal Position Detection, Missing Terminal/Tube/Housing Detection, etc.

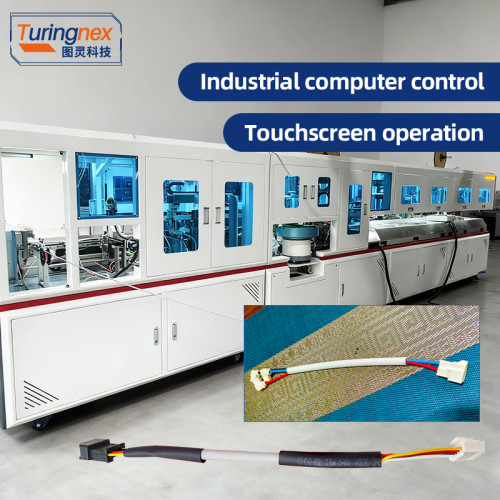

Control Method：Industrial Computer Control, Touchscreen Operation. Mitsubishi PLC Mainboard Control System

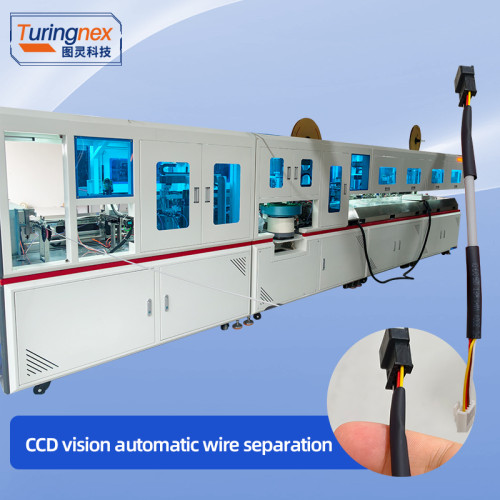

Wire Payoff System：Computerized Fully Automatic Pre-feeding Device, Suitable for Spooled Wire, Industry-Standard 600mm Spool Device
Production Capacity：500-600 finished sets per hour within 200mm
Features

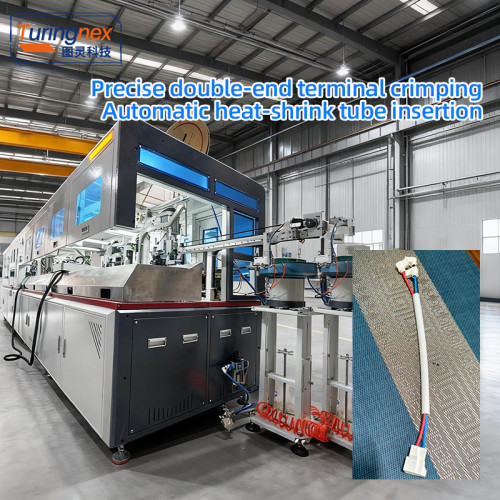

1.Main Functions:Terminal A: Wire Cutting, Outer Sheath Stripping, Inner Insulation Stripping, Wire Straightening, Automatic Color Sorting, Terminal Crimping, Terminal Appearance Inspection, Connector Housing Insertion, Connector Housing Position Detection.
Terminal B: Wire Cutting, Double-End Heat-Shrink Tube Sleeving, Outer Sheath Stripping, Inner Insulation Stripping, Wire Straightening, Automatic Color Sorting, Terminal Crimping, Terminal Appearance Inspection, Connector Housing Insertion, Connector Housing Position Detection, Qualified/Unqualified Product Separation, etc.
2.MES System Integration Capability.
3.Optional Terminal Pressure Detection System.
