TR-583LS Plastic Hard Pipe Cutting Machine (Processing range:1-50mm)
- Model
- TR-583LS
Item specifics
- Power
- AC220V/50HZ,
- Application
- Automatic Tube Cutting Machine
- Feature
- Stable Performance
- Warranty
- 1year
Review
Description

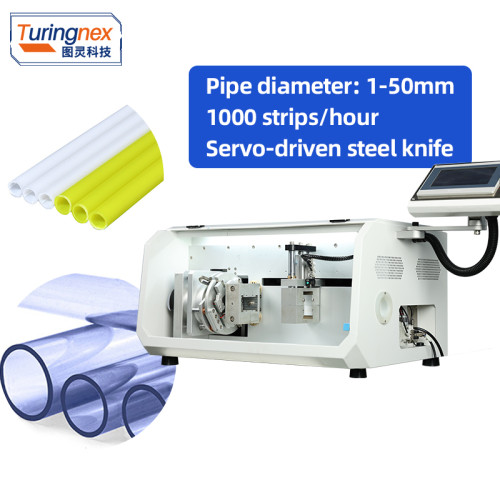

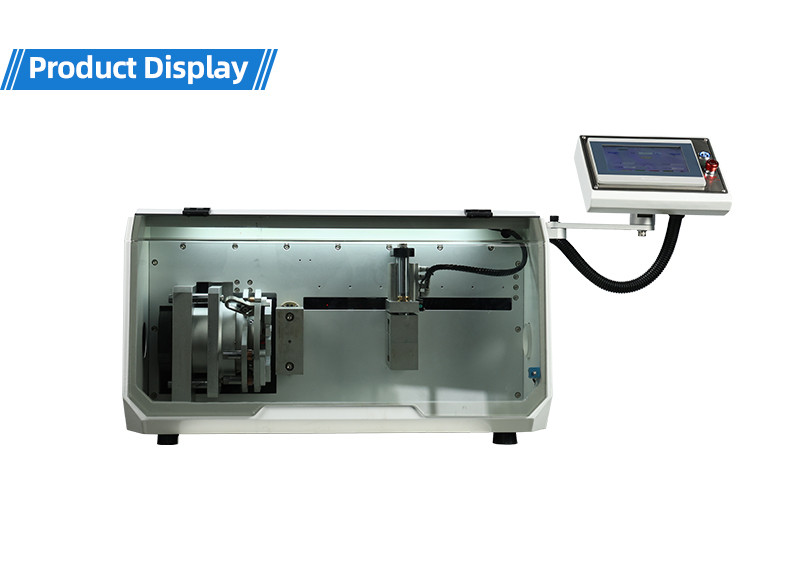

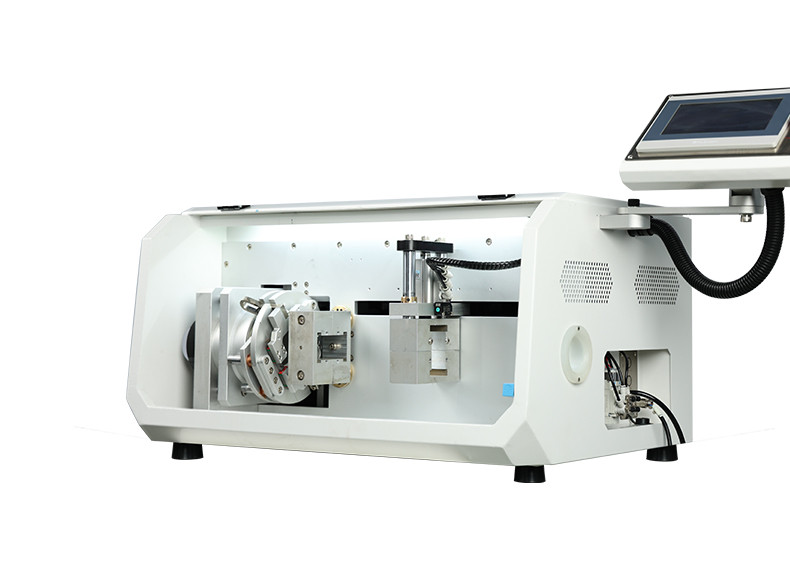

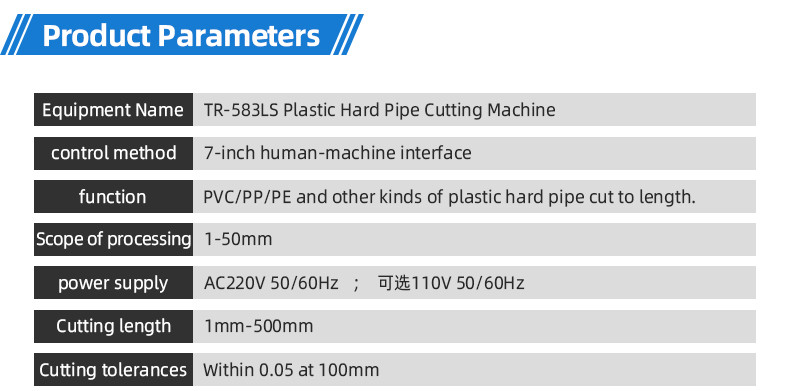

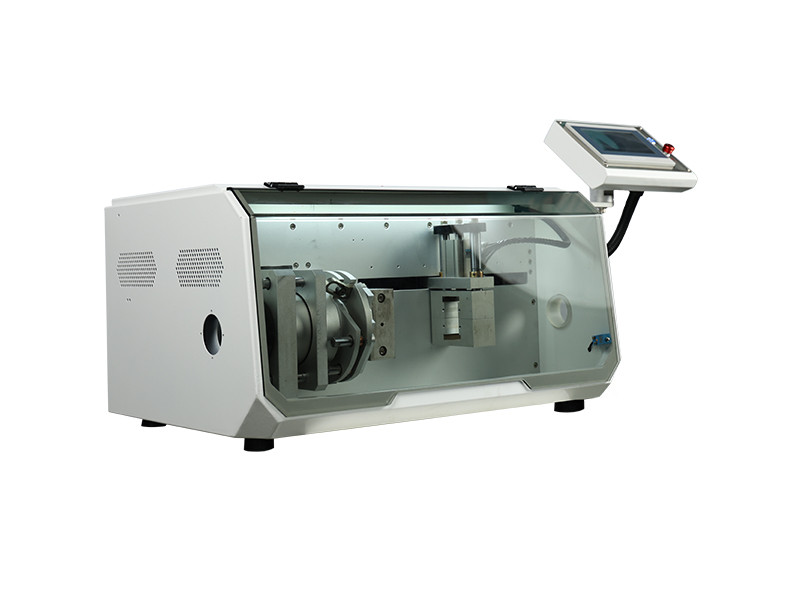

TR-583LS Plastic Hard Pipe Cutting Machine

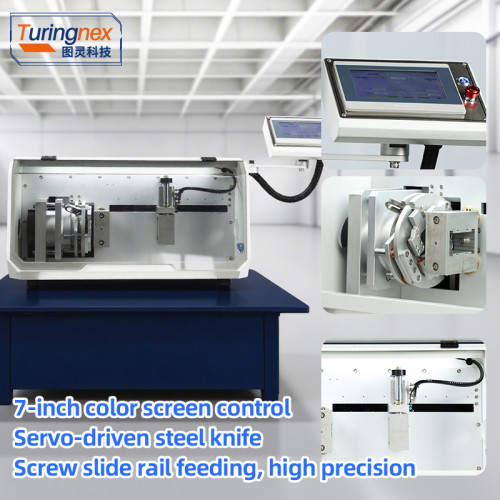

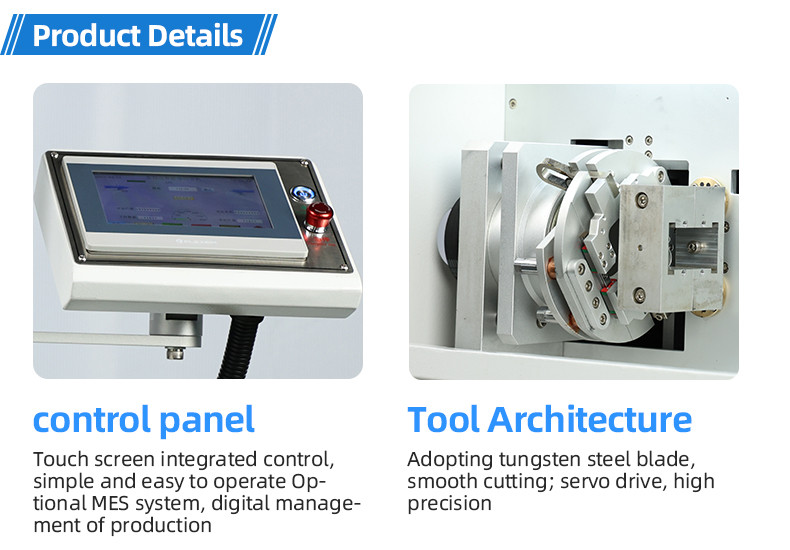

Display: 7-inch man-machine interface

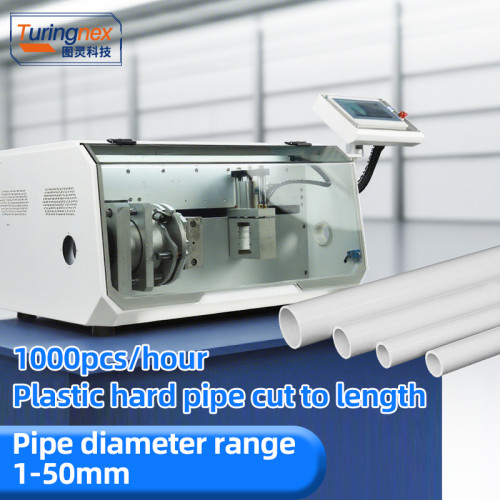

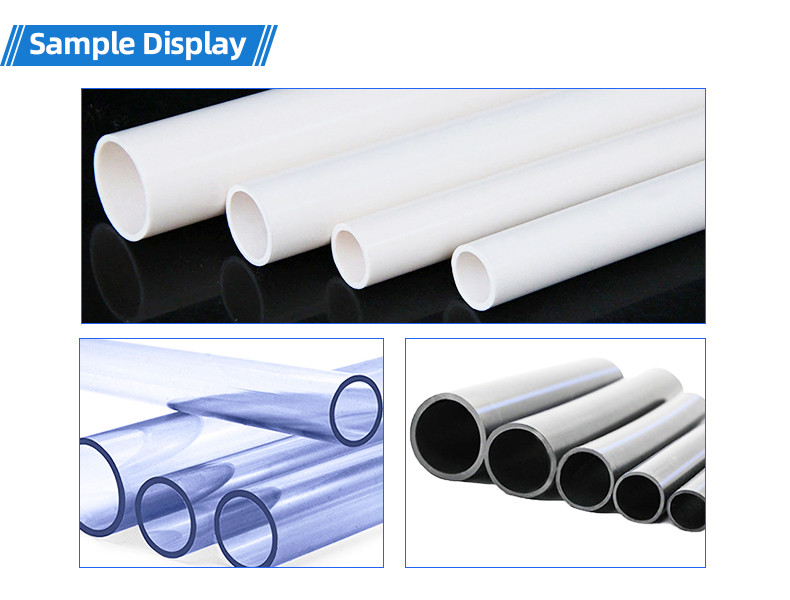

Function: PVC/PP/PE and other kinds of plastic hard pipe cut off at fixed length
Processing range: 1-50mm
Cutting length: 1mm-500mm

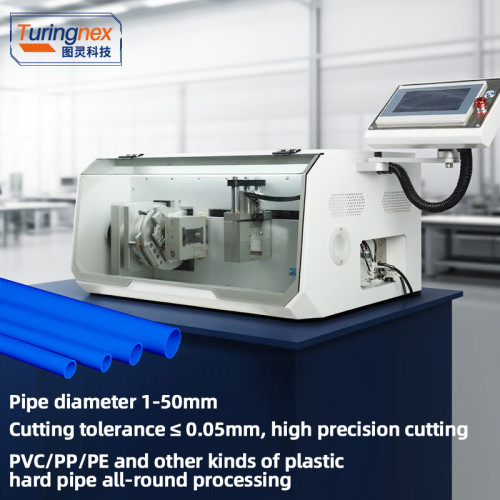

Cutting tolerance: 0.05 or less in case of 100mm

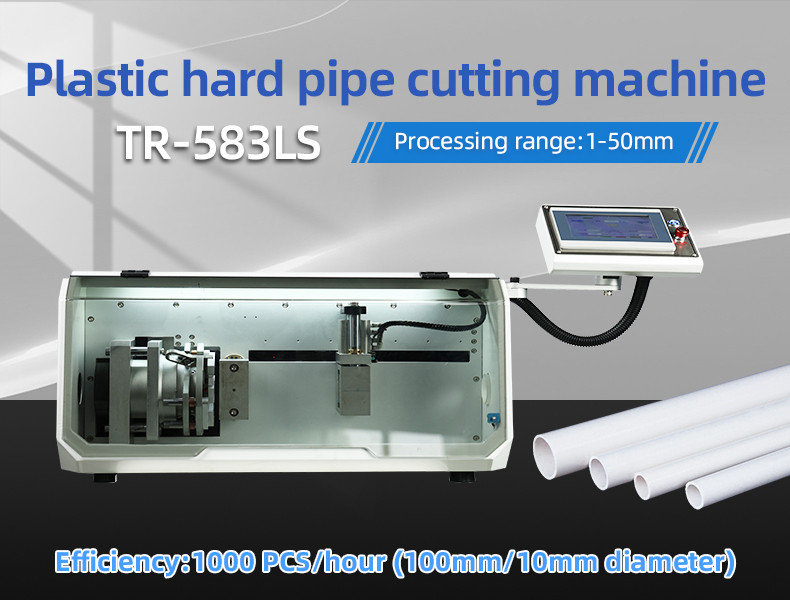

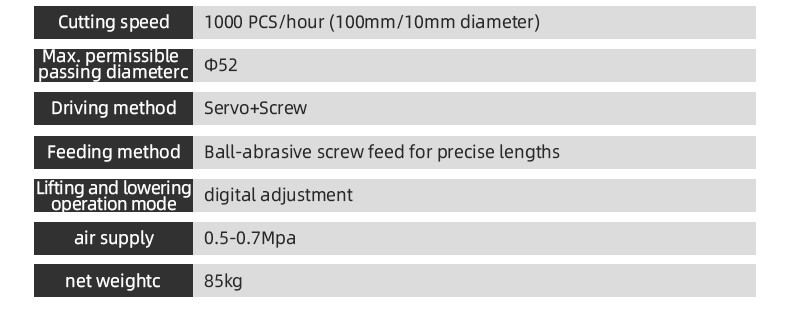

Efficiency: 1000 PCS/hour (100mm/10mm in diameter)

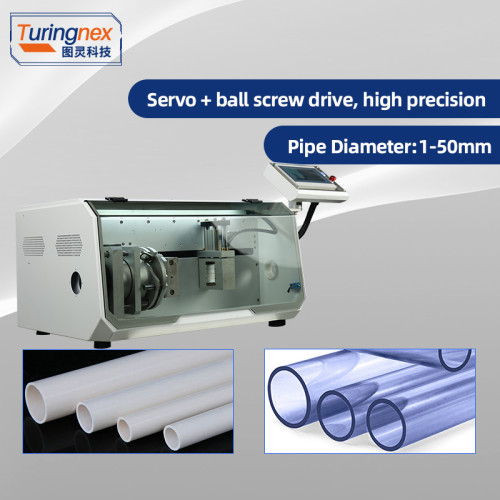

Driving mode: servo+screw

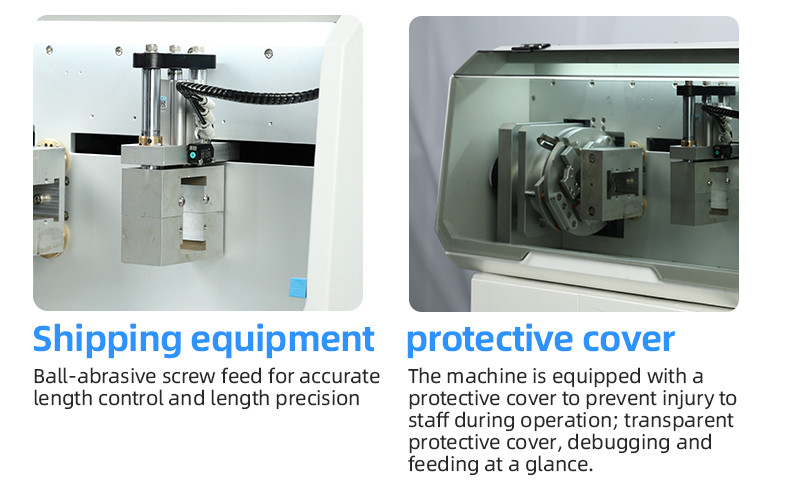

Feeding mode: ball-abrasive screw feeding. Accurate length
Lifting operation: digital adjustment of the height of the pressure wheel
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air source: 0.5-0.7Mpa
Net weight: 75kg
