TR-535LP Bellows cutter (with cutaway)
- Model
- TR-535LP
Item specifics
- Power
- AC220V/50HZ,
- Application
- Automatic Tube Cutting Machine
- Feature
- Stable Performance
- Warranty
- 1year
Review
Description

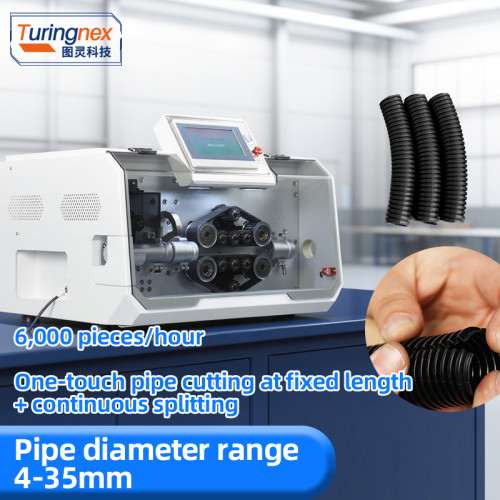

TR-535LP Bellows cutter (with cutaway)
Display: 7-inch man-machine interface

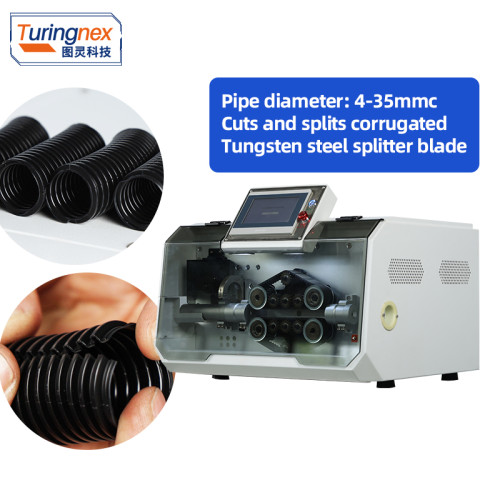

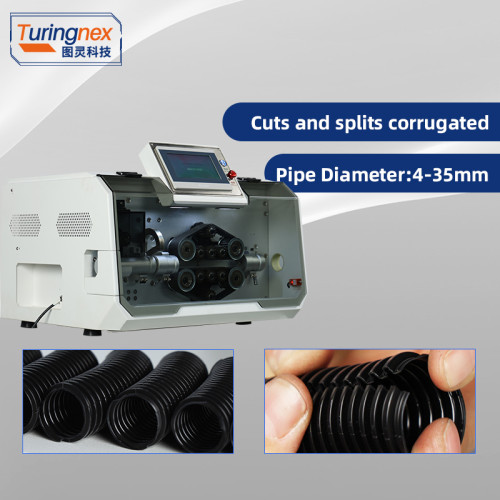

Functions: 1, corrugated pipe / PVC pipe and other thin-walled pipe fixed-length cutting and splitting;
2, splitting function: continuous splitting
Processing range: 4-35mm
Cutting length: 1mm-999999.99mm

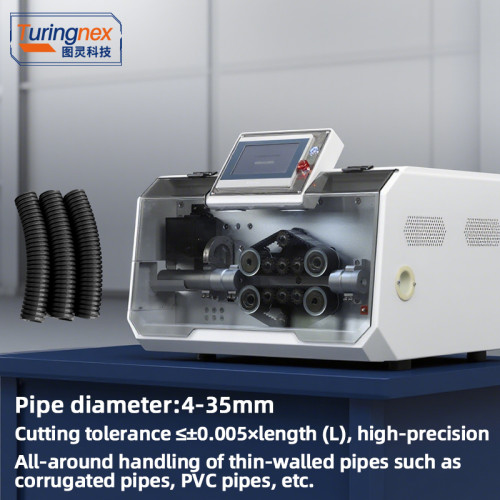

Cutting tolerance: within 0.005 * L (L = cutting length)
Efficiency: 6,000 / hour (according to the length of the pipe, the size of the decision)
Driving mode : 10-wheel drive; optional servo motor

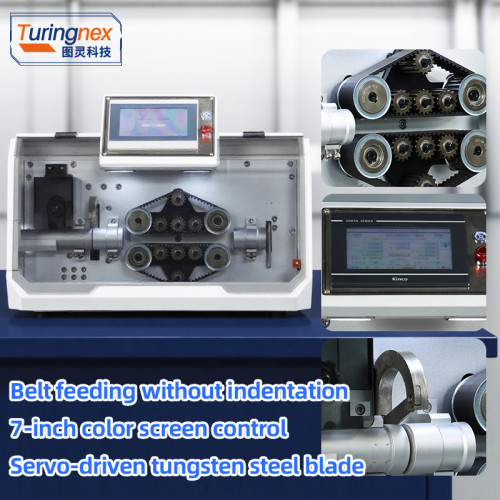

Feeding method: belt feeding, no embossing and scratching of the pipe.
Lifting operation mode: digital adjustment of press wheel height
Slitting power mode: servo motor
Slitting speed adjustment: touch screen stepless speed regulation
Slitting adjustment mode: touch screen digital adjustment
Lifting operation mode: digital adjustment of press wheel height
Power supply: AC220V 50/60Hz; optional 110V 50/60Hz
Air supply: no air supply needed
Dimensions (L*W*H): 680*605*520mm
Net weight: 75kg
