TR-LC40 Automatic Tape Winding Machine
- Model
- TR-LC40
Item specifics
- Power
- 220V 450W
- Application
- Single Point Tape Wrapping Machine
- Feature
- Stable Performance
- Function
- Automatic Tape Winding Machine
Review
Description

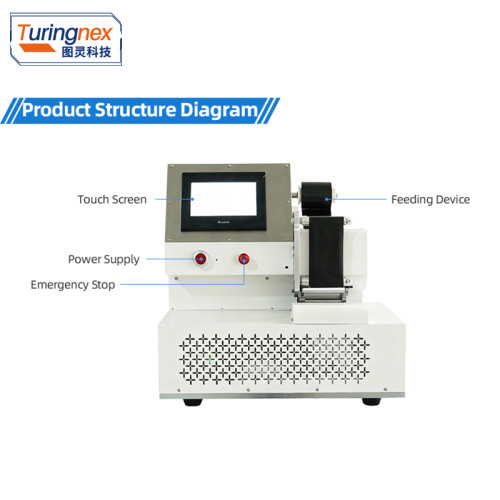

TR-LC40 Automatic Tape Winding Machine
Voltage and Power AC220V, 50Hz, 500W
Dimensions and Weight 500x540x520mm, 50kg

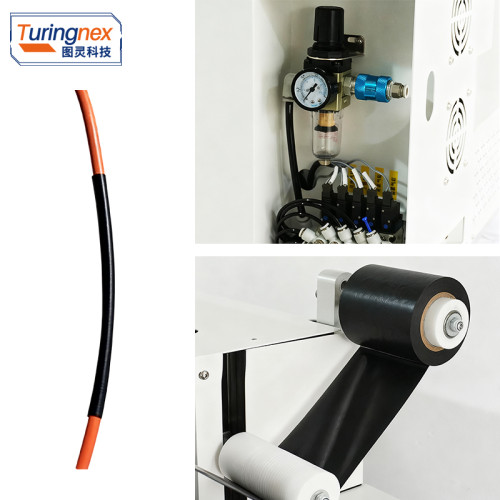

Suitable Air Pressure 0.4-0.6MPa
Working Environment 0-40℃ (Ambient Temperature)
Working Efficiency 5s
Winding Precision Within ±2mm
Wire Diameter Range 3-5mm

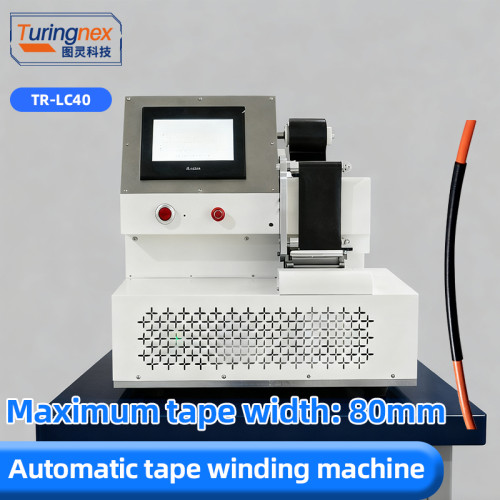

Tape Width Range ≤80mm
Tape Cutting Length 20-60mm
Winding Overlap Within ±2mm (Varies slightly with different tape types)
Tape Material PVC, Cloth-based Tape, Acetate Tape, etc.
Special Requirements This model is best for winding wide tape wire harnesses.
Equipment Description

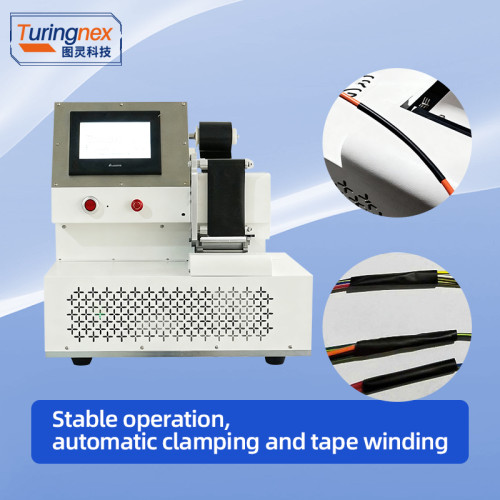

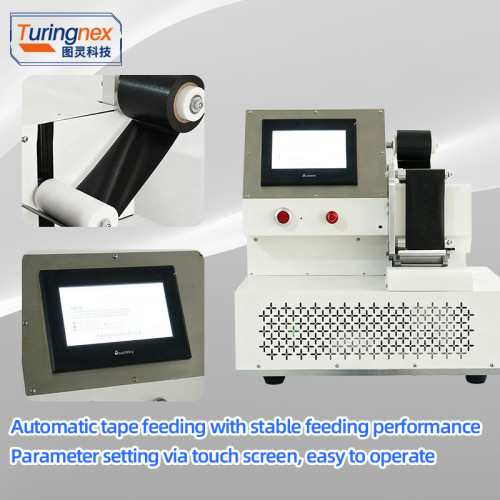

This equipment is suitable for winding wide tape on single or multiple wire harnesses. According to requirements, different tape lengths and winding turns can be adjusted digitally, which is convenient. It has automatic clamping, tightening, and winding functions, ensuring better stability of tape winding. After the wire harness is placed manually, the equipment automatically clamps, winds the tape, and cuts the tape. It is easy to operate, reducing labor intensity and improving work efficiency.
