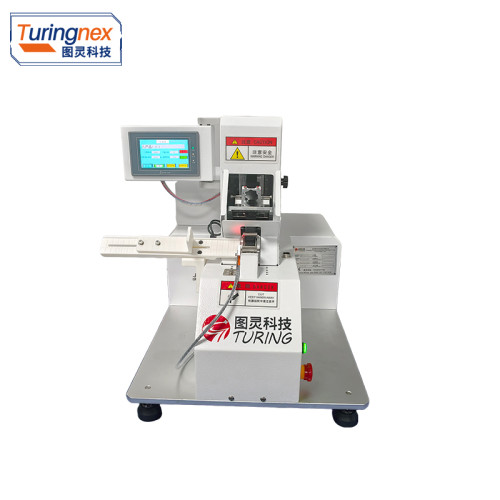

TR-BJ1015 Automatic Coil Tape Wrapping Machine
- Model
- TR-BJ1015
Item specifics
- Power
- 220V 50Hz
- Application
- Single Point Tape Wrapping Machine
- Feature
- Stable Performance
- Function
- Automatic Tape Winding Machine
Review
Description

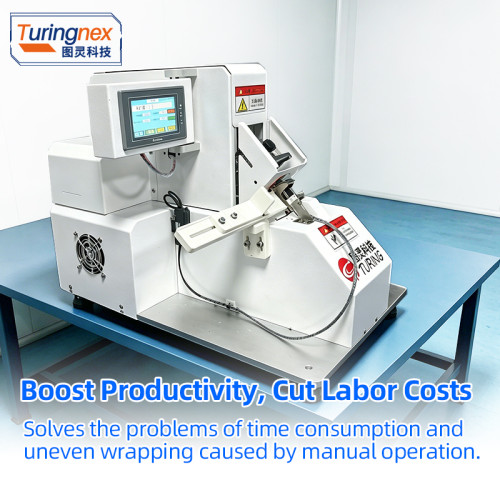

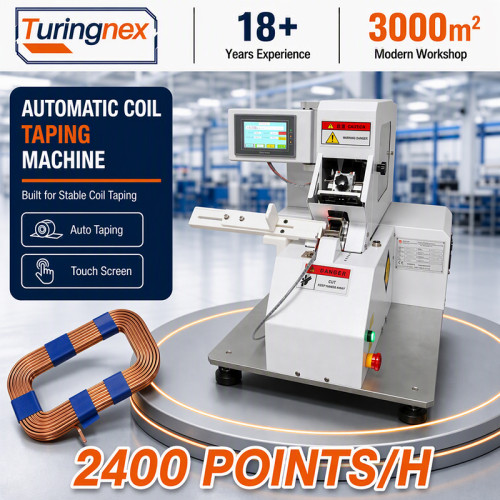

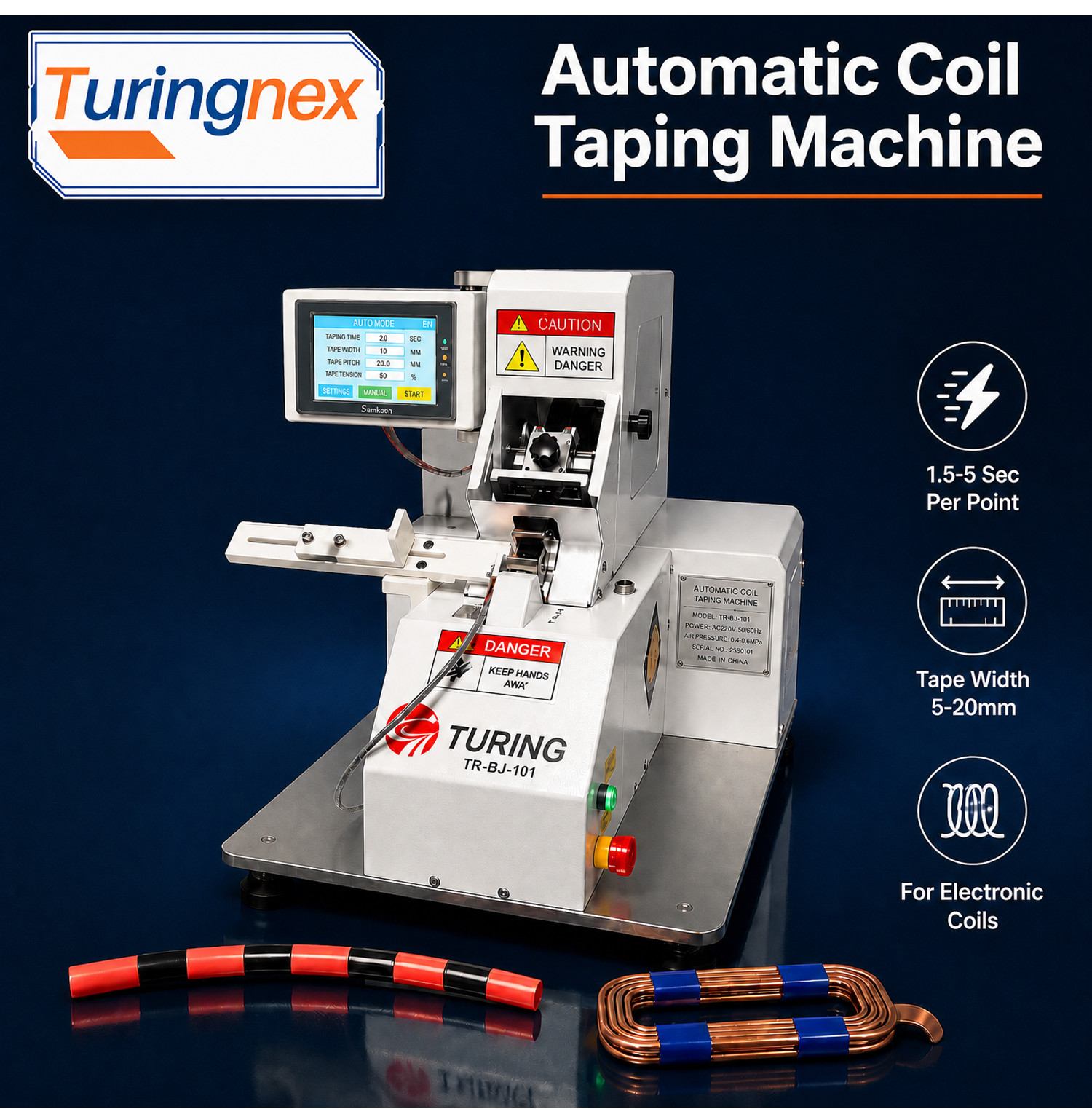

TR-BJ1015 Automatic Coil Tape Wrapping Machine
Product Highlights

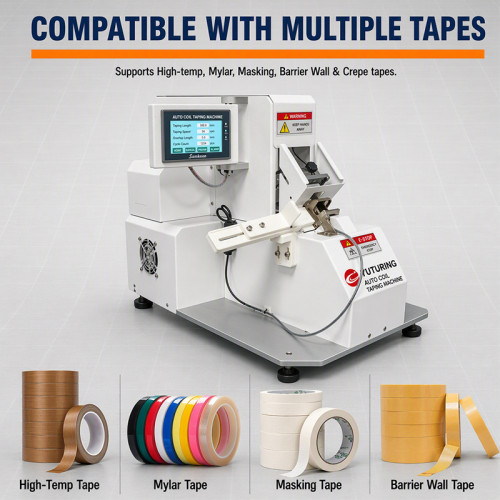

1.Wide compatibility for various adhesive tapes

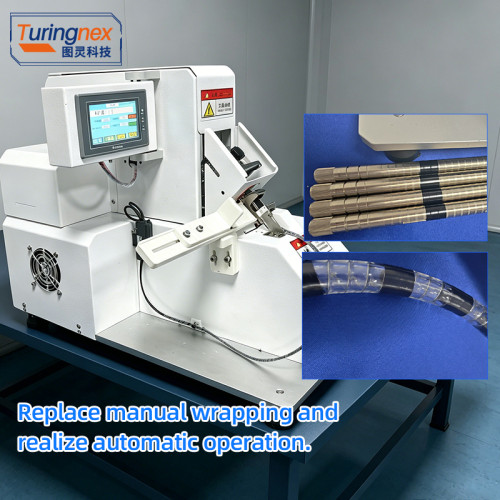

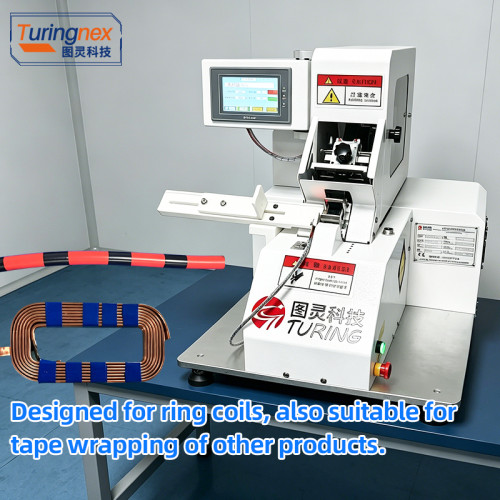

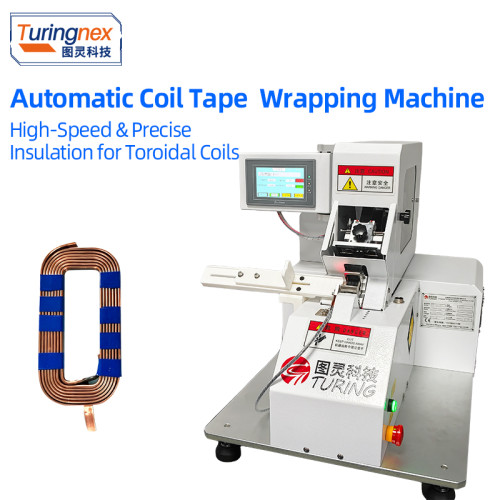

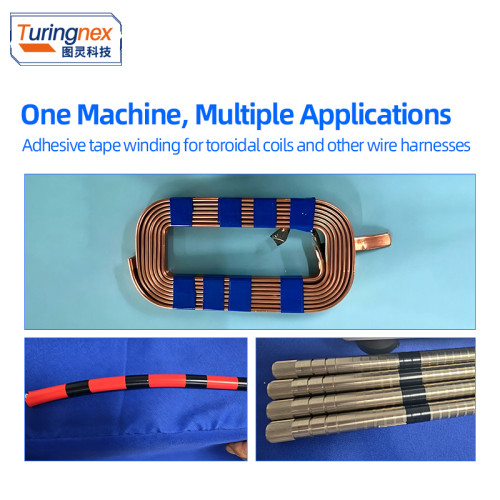

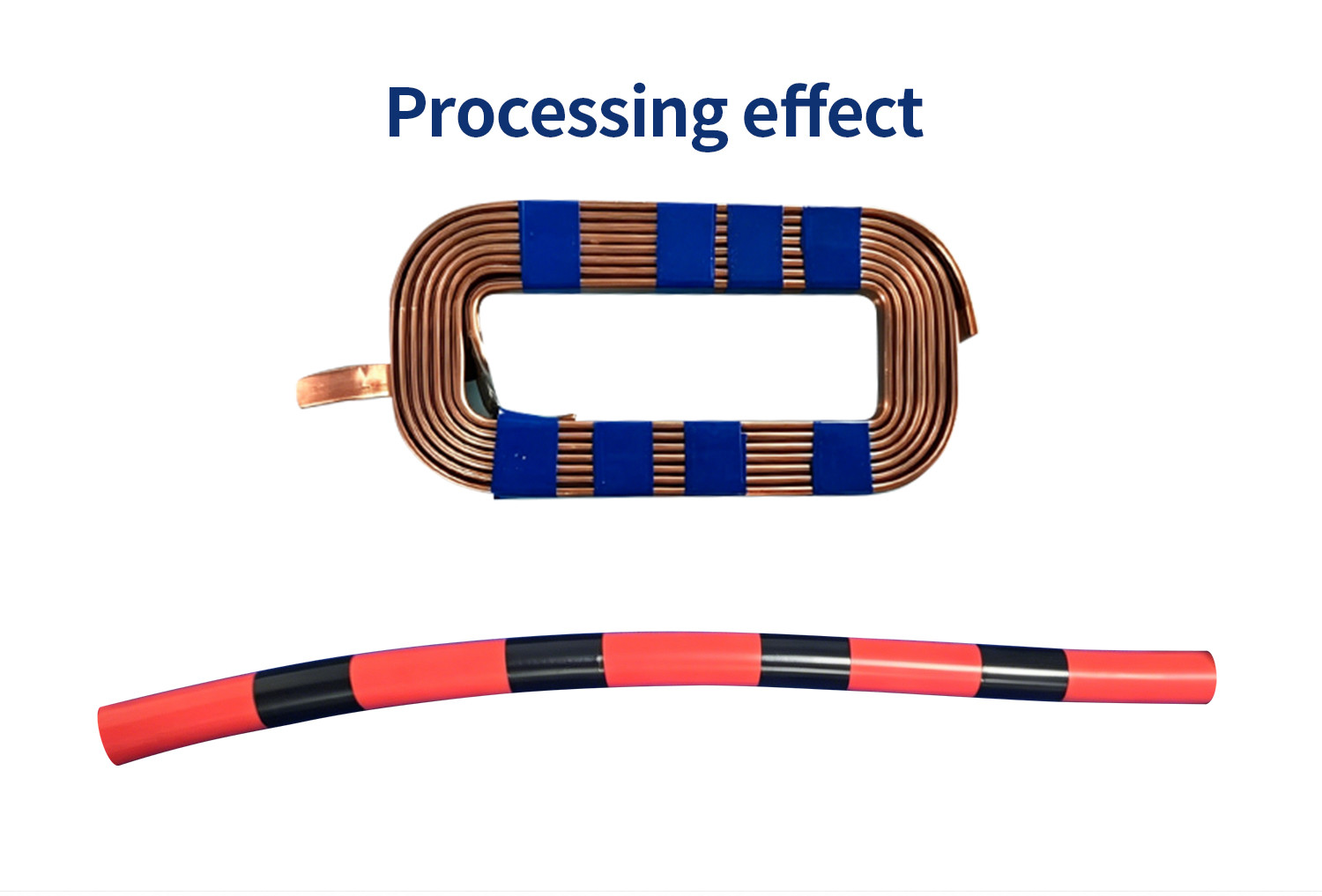

Designed for taping toroidal coils, it works with inductance coils, stator wire packs and other electronic coils. Compatible with masking tape, Mylar tape, barrier tape, high-temperature tape and more.
2.High processing efficiency with freely adjustable process parameters

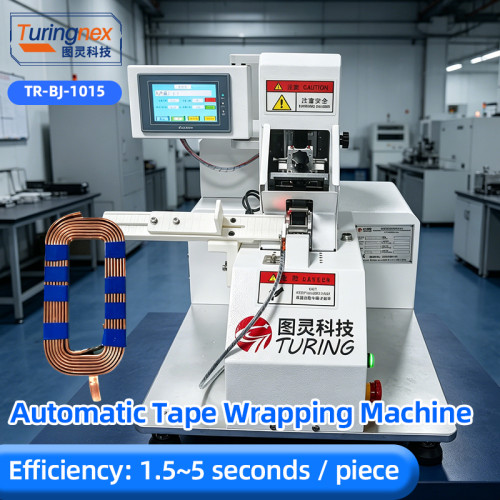

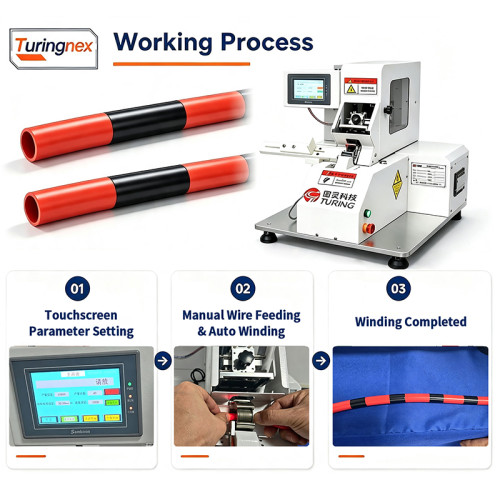

The taping cycle for one workpiece only takes 1.5–5 seconds. All parameters including taping turns, rotating speed, tape length and tape feeding speed can be set independently on the touchscreen.
3.Multiple smart sensors with collision prevention & tape-out alert
Equipped with a photoelectric sensor to trigger an alarm when tape runs out. A fiber sensor stops tape feeding if the finished part is not removed, effectively avoiding mechanical collision damage.

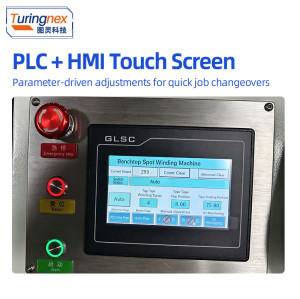

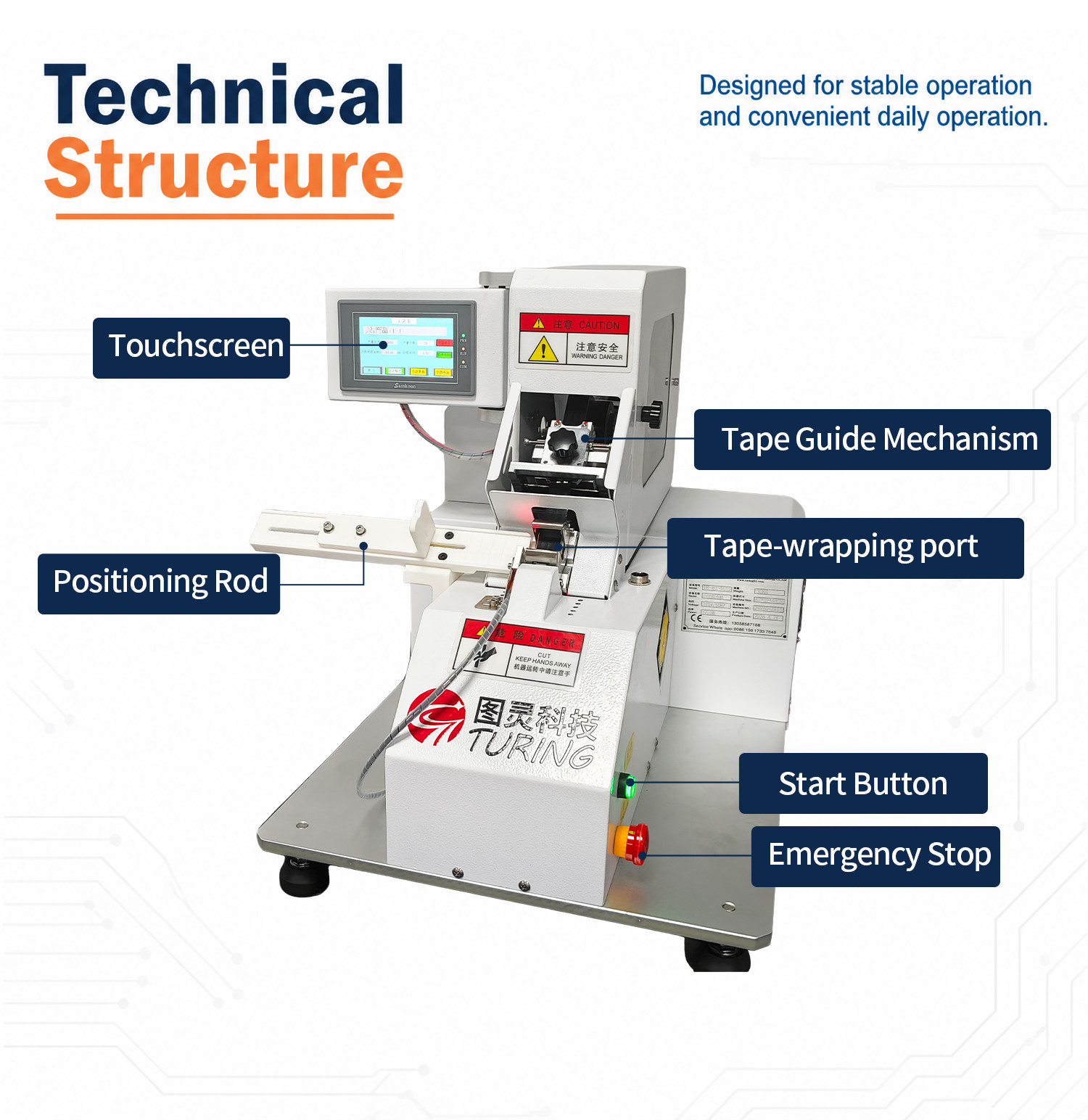

4.PLC touch intelligent control, easy to operate

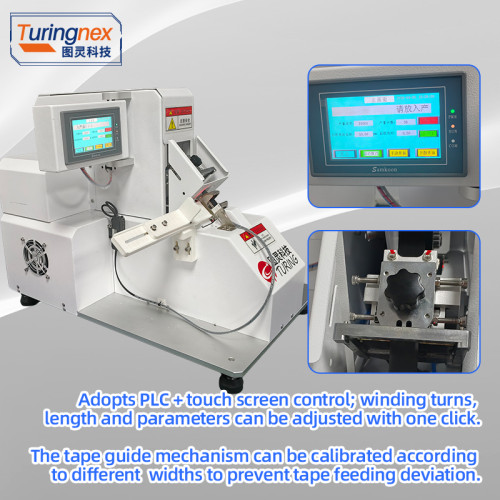

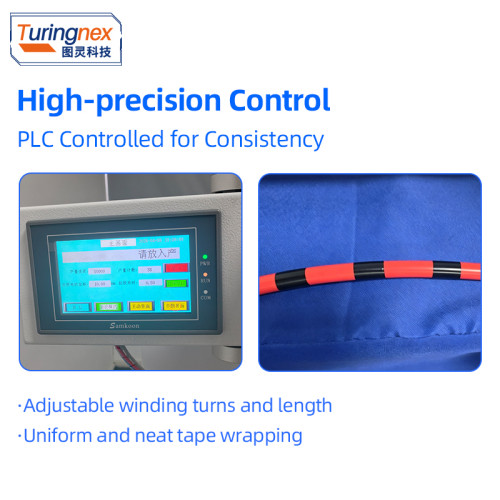

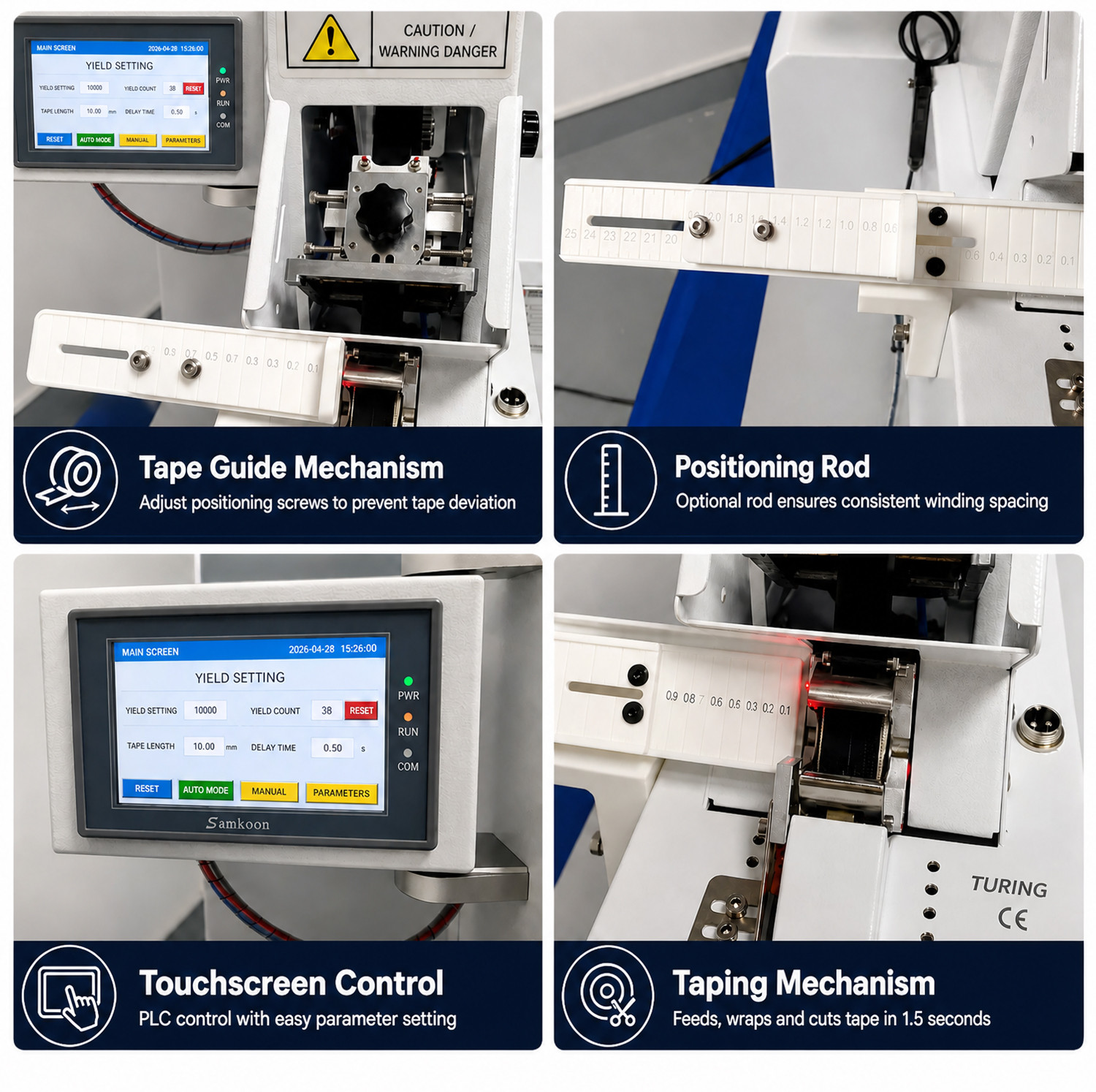

Adopts PLC with HMI touchscreen, including main production page, manual debugging page and parameter setting page. One-click switch between auto/manual modes. Intuitive functions for yield counting & reset, pause and reset, friendly for new operators.
5.Modular mechanical structure, time-saving tape replacement & maintenance
Tape replacement takes only 10 seconds. The tape guide mechanism adjusts via limit screws to prevent tape deviation. Standard split components for cutting blade box and taping gear enable easy disassembly, replacement and maintenance.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.

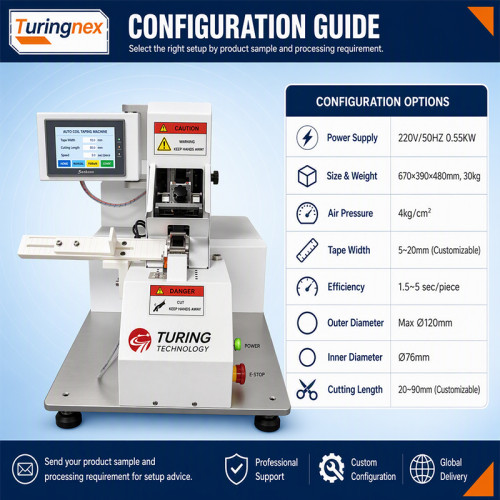

Equipment Name | TR-BJ1015 Automatic Coil Tape Wrapping Machine | |
Power | 220V/50HZ 0.55KW | |
Size & Weight | 670x390x480mm，30kg | |
Air Pressure | 4kg/cm² | |
Tape Width | 5~20mm (Customizable) | |
Efficiency | 1.5~5 seconds per piece | |
Outer Diameter
of Tape Roll | Max ￠120mm | |
Inner Diameter
of Tape Roll | ￠76mm | |
Cutting Length | 20~90mm (Customizable) | |
Apply tapes | Masking tape, Mylar tape, Dam tape, high-temperature tape, etc. | |
