Model
TR-2585

Item specifics

Power
AC220V/50HZ,
Application
terminal crimping machine
Feature
Stable Performance
Warranty
1year
Contact
Lily 0086-13715588365

Review

Description

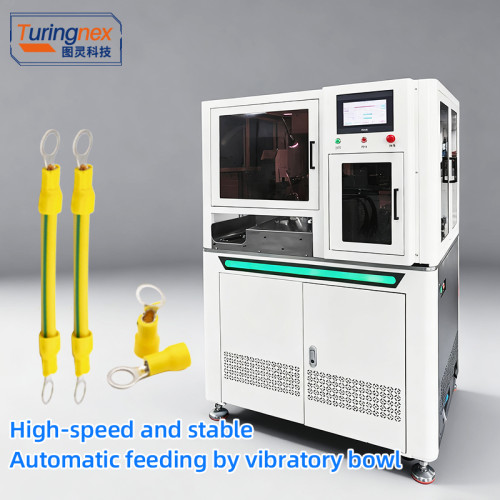

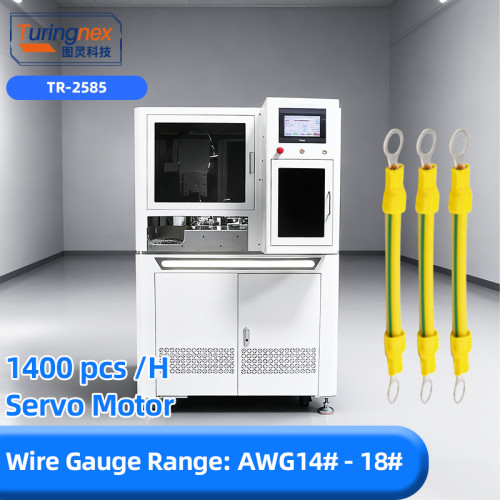

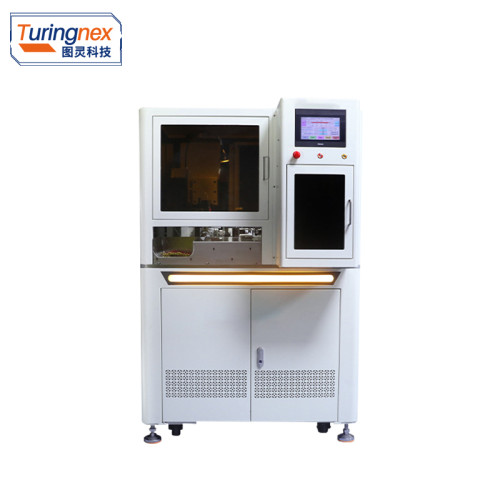

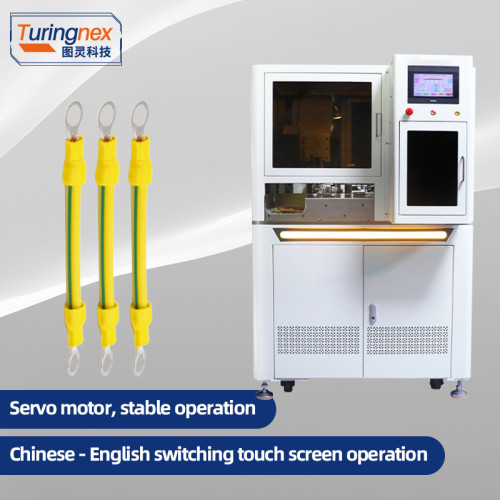

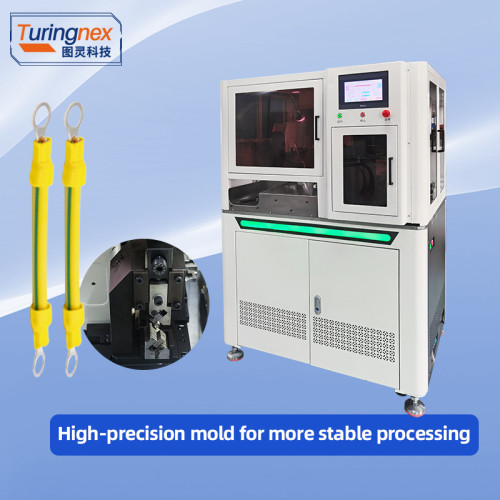

TR-2585 Automatic Double - head Pre - insulated Terminal Machine
Processing Range: AWG14# - 18#
Cutting Length: 50 - 9900mm
Stripping/Twisting Length: 0 - 15mm
Crimping Capacity: 2.0T
Cutting Precision: Within 1mm + 0.2% of Cutting Length
Optional Molds: 30 - 40mm
Production Efficiency: 1400 pieces/hour (within 100mm in length)
Air Pressure: 0.4 - 0.6Mpa
Dimension and Weight: 1150x750x1600mm, 450kg
Detection Devices: Optical fiber sensing, wire detection, terminal crimping detection, wire blockage detection, low air pressure detection
