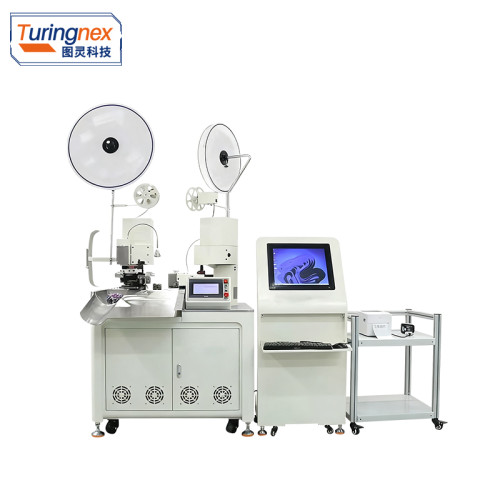

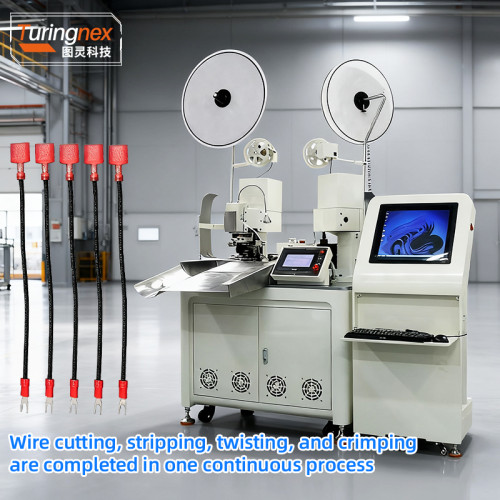

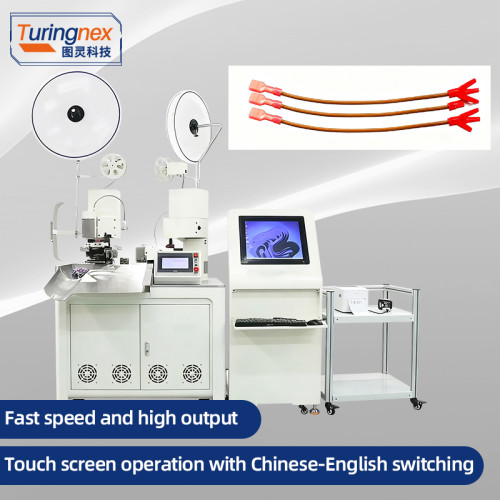

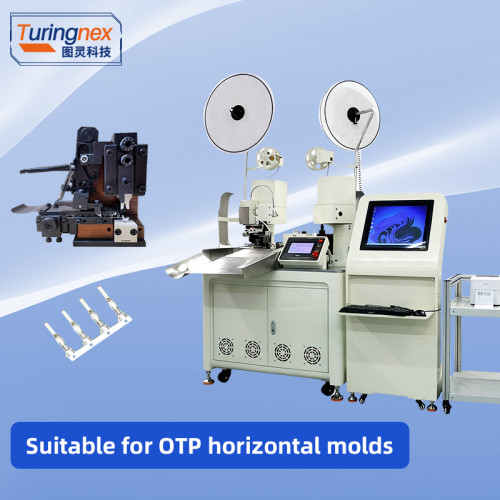

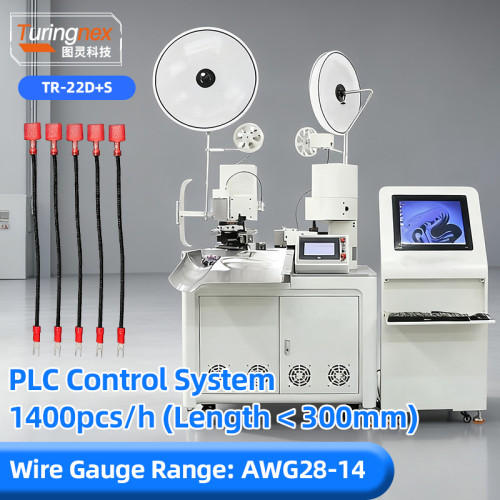

TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine

TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine

Model
TR-22D+S

Item specifics

Power
AC220V/50HZ,
Application
terminal crimping machine
Feature
Stable Performance
Warranty
1year
Contact
CoCo 0086-18666170785

Review

Description

TR-22D+S Automatic Double-End Pre-Insulated Terminal Crimping & Stripping Machine
Applicable Wire Range：AWG28 - AWG14
Stripping/Twisting Length：7 - 12mm
Cutting Precision：±(0.5 + 0.002 * L) mm, L = Cutting Length
Cutting Length：50 - 9999mm
Crimping Force：2.0T
Applicator：30mm or 40mm stroke optional
Air Pressure：4 - 6KGF
Detection：Wire exhaustion, low air pressure, termination error (crimping force monitor optional)
Power：220V/110V/50/60hz
Display Language：Chinese/English
Dimensions：700*800 * 1500mm
Weight：358kg
