TR-FSS01 Fully Automatic Single-Head Multi-Hole Waterproof Plug Terminal Crimping Machine
- Model
- TR-FSS01
Item specifics
- Power
- AC220V/50HZ,
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco 0086-18666170785
- Function
- inserting waterproof plug terminal machine
Review
Description

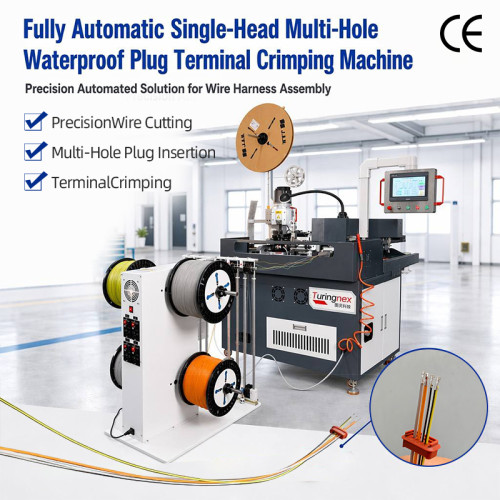

TR-FSS01 Fully Automatic Single-Head Multi-Hole
Waterproof Plug Terminal Crimping Machine
Product Highlights

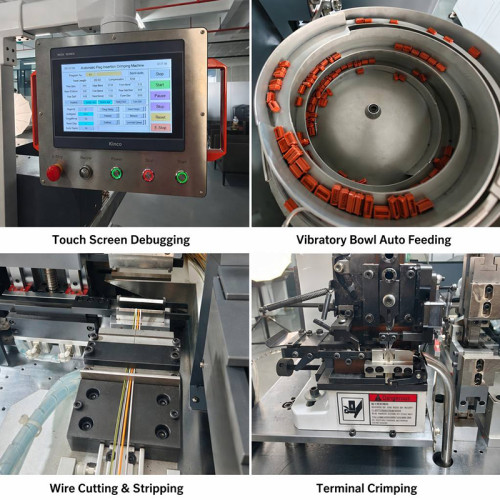

1. Four-in-One Highly Integrated Automation, Reduces Labor Costs
The machine integrates wire cutting, multi-hole waterproof seal insertion, terminal crimping and wire tinning in one unit. It cuts labor management expenditure and delivers a higher production first-pass yield rate.
2. Premium Global & Domestic Top-Tier Brand Components for Superior Equipment Stability
Fitted with Leadshine servo motors and AirTAC pneumatic components. Brand-name spare parts translate to low failure rates, extended service life, and easily accessible replacement consumables worldwide, bringing full purchasing confidence to customers.
3. Ultra-High Cutting & Crimping Precision Ensures Zero Defect Finished Products
Length tolerance within 500mm is only ±(0.5mm+0.2%L); equipped with a 3-ton cast-iron ultra-quiet terminal crimping machine. Precise displacement control and stable pressure output guarantee wire harnesses meet continuity performance and pull force test standards.
4. Intelligent Constant Tension Wire Feeding System Prevents Wire Stretching Damage
The main unit is built with a synchronous wire feeder under pull-back mode to maintain constant wire tension. It is particularly critical for processing ultra-fine wires or high-spec electronic wires, effectively lowering the reject rate.
5. Minimalist Operation & Strong Compatibility for Faster Product Changeover & Machine Commissioning

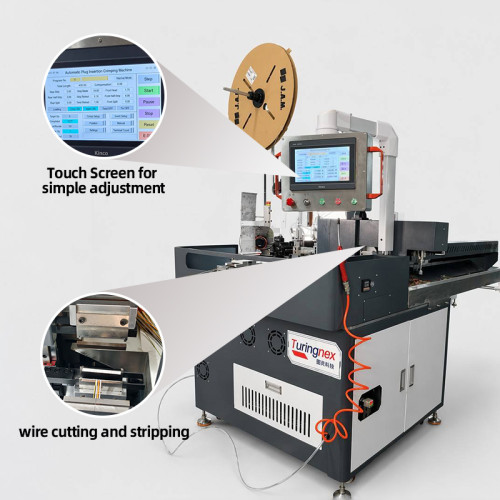

Parameters are set via touchscreen, compatible with horizontal/vertical feed OTP dies. It shortens operator training cycles, enables seamless compatibility with customers’ existing die assets, and greatly reduces debugging time during product model switching.
Why Choose Us?
1.Industry Expertise: 18 Years of Focus (Since 2008) with 50,000+ units delivered worldwide.No more instability. Partner with a legacy brand that understands the DNA of wire processing.
2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
4.Global Compliance: 100% CE Certified & ISO9001:2015 quality management system.Seamless import. Our machines meet international safety standards (UL/RoHS/CE) for global markets.
5.Economic ROI: 6-Month Payback Period average ROI by replacing 4-6 manual operators. Cost efficiency. Transform your labor costs into high-margin automated productivity.
6.Global Footprint: 112 Countries Reached with 24/7 technical support in 10+ languages. Lifetime support. Reliable remote video diagnostics and lightning-fast spare parts delivery anywhere.
Equipment Name | TR-FSS01 Fully Automatic Single-Head Multi-Hole
Waterproof Plug Terminal Crimping Machine | |
Power Supply | AC 220V | |
Processing Range | Determined by the aperture of waterproof plugs | |
Efficiency | 400PCS/H | |
Stripping Length | Wire tip: 0–10mm; wire tail: 0–13mm | |
Crimping Capacity | Standard 3 Ton (Cast iron ultra-silent clutch 3.0T
terminal crimping machine) | |
Compressed Air | Clean dry compressed air, 6 kgf/cm² | |
Cutting Accuracy | ±(0.5mm + 0.2% of set length) for length ＜ 500mm
±(1mm + 0.2% of set length) for length ＞ 1000mm | |

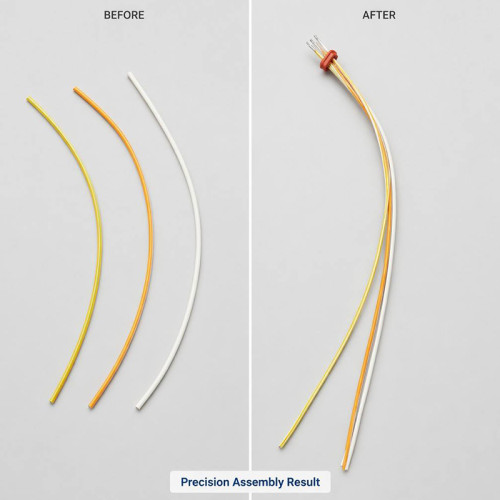

Machine Functions | Wire cutting, multi-hole waterproof plug insertion,
terminal crimping | |
Dongguan Turing Automation Technology Co., Ltd. was established in 2008, located in Dongguan City, Guangdong Province. The company specializes in the production of: automatic terminal embossing machine, automatic terminal embossing tinning machine, ultra-quiet energy-saving terminal machine, mute copper tape machine, computerized wire cutting and stripping machine, coaxial stripping machine, automatic nylon zip tie machine, automatic winding and bundling machine, heat shrinkable tube computerized pipe cutting machine, terminal machine molds, knife molds and new energy automation wiring harness processing equipment and so on. Mainly serves in the automobile and motorcycle, electronics, home appliances, electrical and other wiring harness processing enterprises electrical.
We have rich industry experience and are a reliable supplier. Our holding/co-operating factories have advanced production equipment and skilled frontline staff. Knowing that the development of our company depends on the innovation and quality of our products, we have established a quality management system that meets the requirements of the international quality management system. We constantly launch original innovations according to market and customer needs, always keep the novelty and innovation of our products, and think what our customers think and what they are anxious about. Providing customers with excellent service and meeting their needs is our eternal pursuit!
