TR-535C Corrugated Pipe Punching & Cutting Machine
- Model
- TR-535C
Item specifics
- Power
- AC220V
- Application
- Automatic tube cutting machine
- Feature
- Stable Performance
- Air Pressure
- 0.70Mpa±0.5
- Contact
- Coco 0086-18666170785
Review
Description

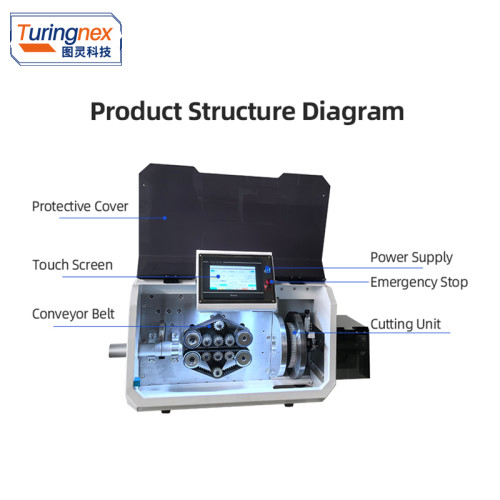

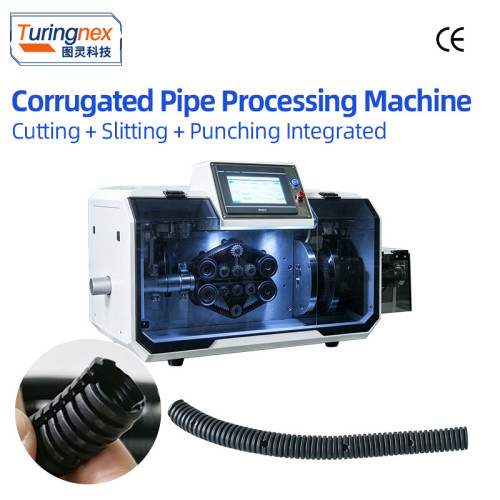

TR-535C Corrugated Pipe Punching & Cutting Machine
Equipment Name: TR-535C Corrugated Pipe Punching & Cutting Machine
Power Supply: AC220V 50/60Hz; 110V 50/60Hz optional
Size & Weight: 82 × 48 × 55 cm, 115kg
Processing Range: 4-35mm
Cutting Length: 1mm - 999999.99mm
Cutting Tolerance: Within 0.005 × L (L = cutting length)

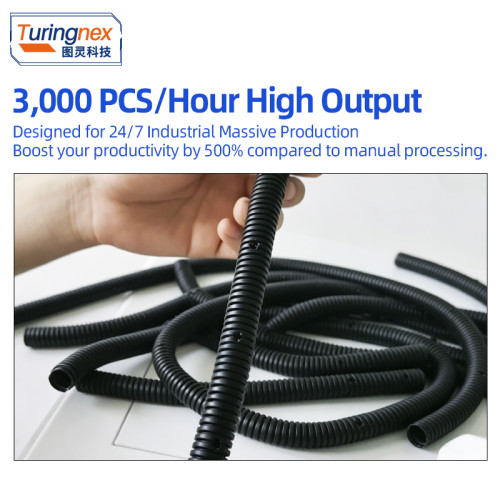

Productivity: 3000 PCS/hour (for 100mm length, 10mm diameter)
Drive System: 10-wheel drive; Servo motor optional
Feeding Method: Belt feeding, no indentation or scratches on pipes
Height Adjustment: Digital adjustment of pressure roller height
Punch Spacing Adjustment: Digital adjustment
Punch Hole Diameter Adjustment: Replaceable punches

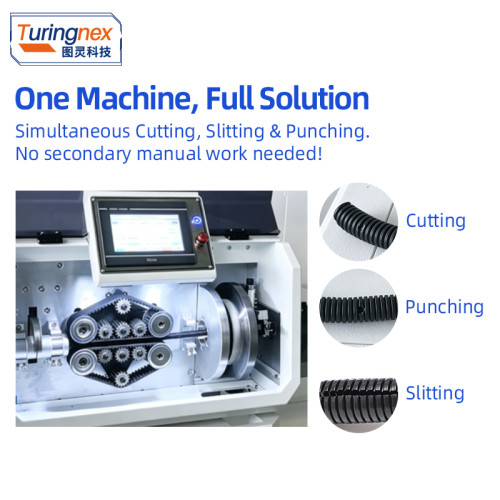

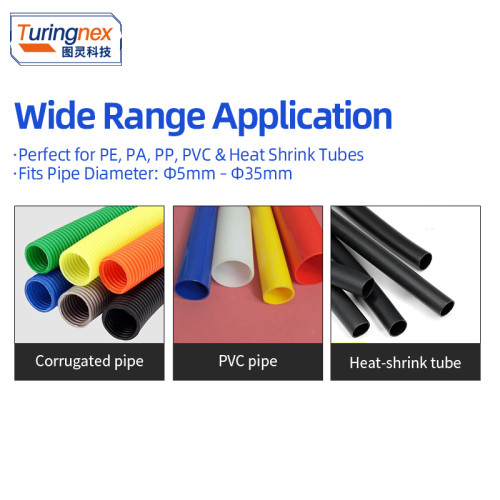

Functions: One-step completion of fixed-length cutting, slitting, and punching for thin-walled pipes including corrugated pipes, PVC pipes, and heat-shrink tubes
Features
1.Optional configurations: MES system, IoT system, fixed-point inkjet marking, pipe slitting function, and external auxiliary device alarm.
2.User-friendly system with intuitive operation via 7-inch color touch screen.
3.Modular interfaces for easy connection of accessories and peripheral equipment.
4.Modular design supports future upgrades.
5.A full range of optional accessories and customizable systems.
6.Non-standard customization is available for processing special pipes.
