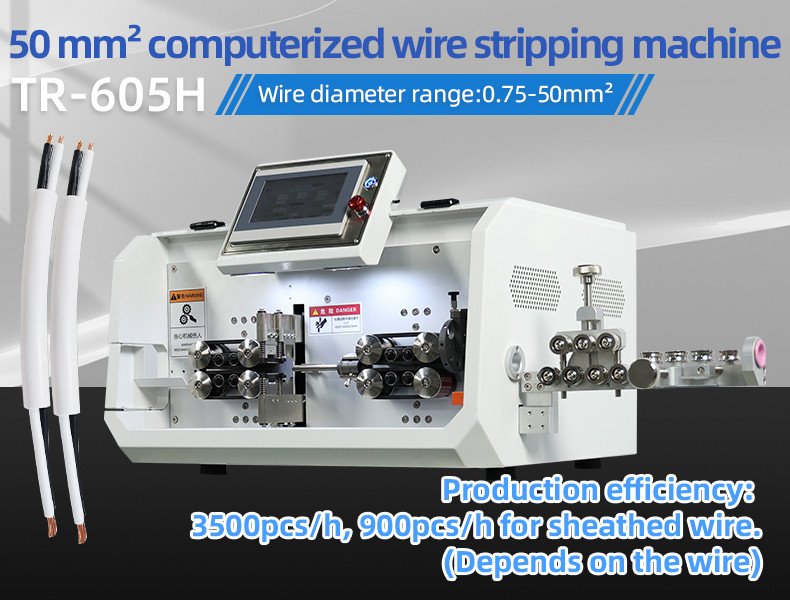

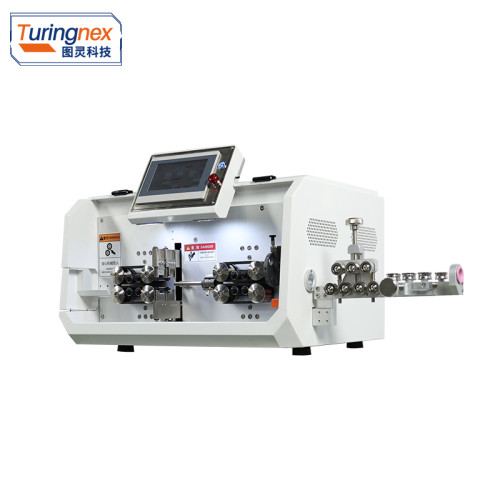

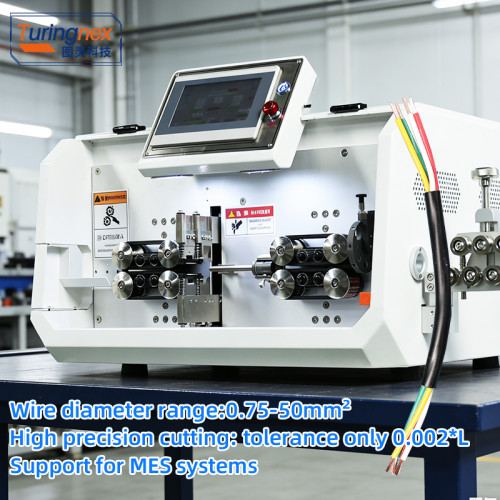

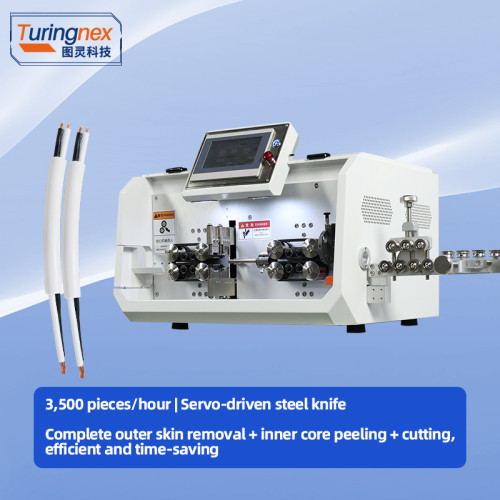

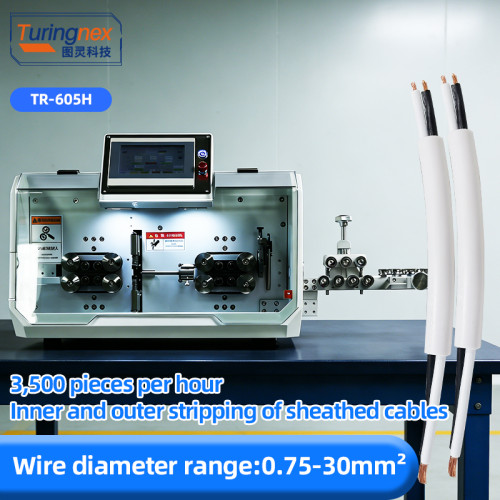

TR-605H Large Square Computerized Wire Stripping Machine (Sheathed wires stripped inside and outside)
- Model
- TR-605H
Item specifics
- Power
- AC220/110V/60HZ/50HZ
- Name
- wire cutting machine
- Cutting length
- 1-999999.99mm
- Scope of processing
- 0.75-50mm²
- Contact
- CoCo +86 18666170785
Review
Description

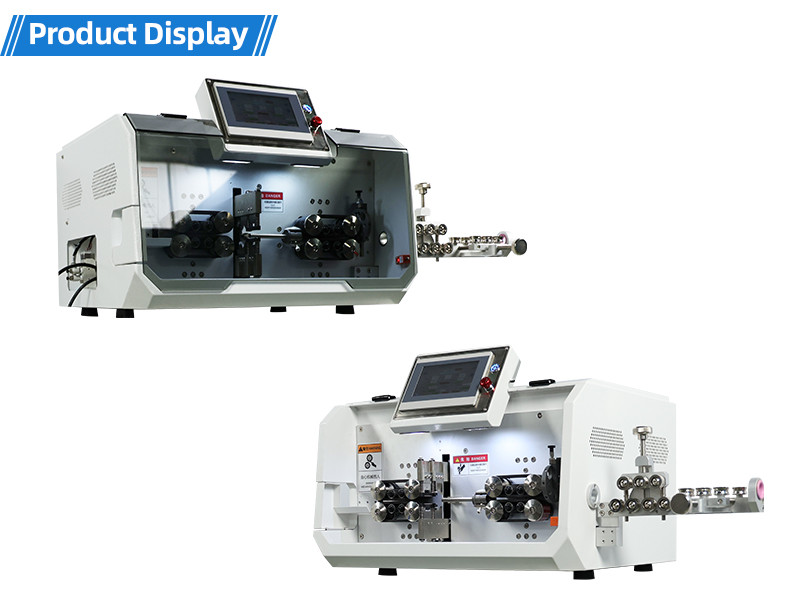

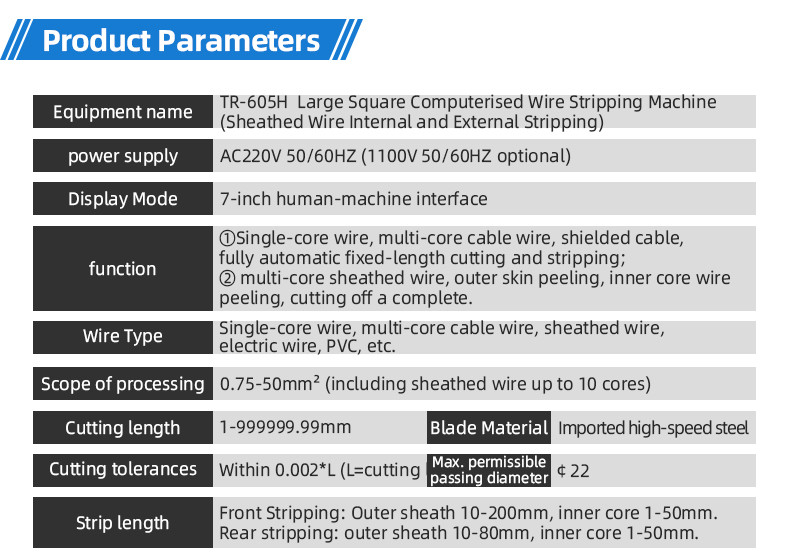

TR-605H Large Square Computerised Wire Stripping Machine
(Sheathed wires stripped inside and outside)
Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)
Display: 7-inch man-machine interface
Function: ① single-core wire, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping;
② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting off at once.
Wire type: single-core wire, multi-core cable, shielded cable, electric wire, PVC, etc.
Processing range: 0.75-50mm²
Cutting length: 1-999999.99mm
Cutting tolerance: 0.002*L or less (L=cutting length)
Stripping length: front stripping: outer jacket fully stripped 10-200mm, inner core wire 1-50mm
Back stripping: outer jacket fully stripped 10-80mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Core wire 1-50mm

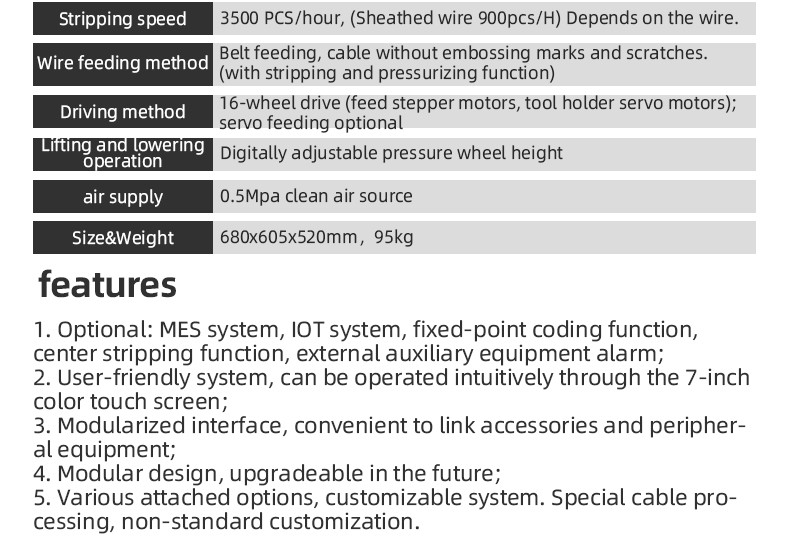

Stripping speed: 3500 PCS/hour, (sheathed wire 900pcs/H) depending on the length and size of the wire

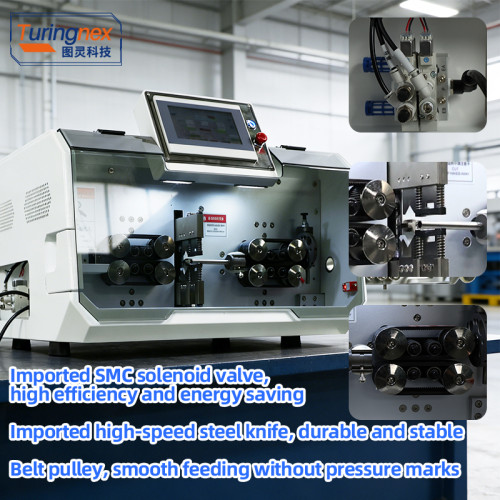

Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping and pressurising function)
Driving mode: 16 wheels drive (feeding stepping motor, knife holder servo motor)
Lifting operation mode: digital adjustment of the height of the pressure wheel
Dimensions and weight: 680x605x520mm，95kg
Allowed to pass through the maximum diameter: 22mm

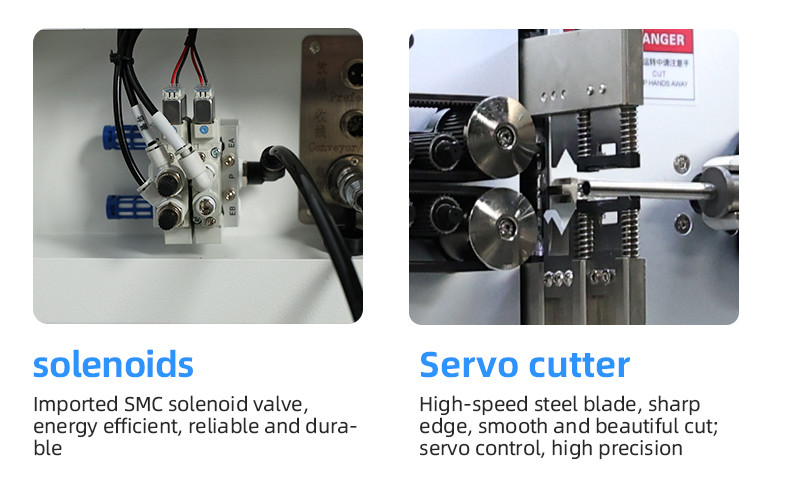

Blade material: imported high-speed steel
Air source: 0.5Mpa clean air source
features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;

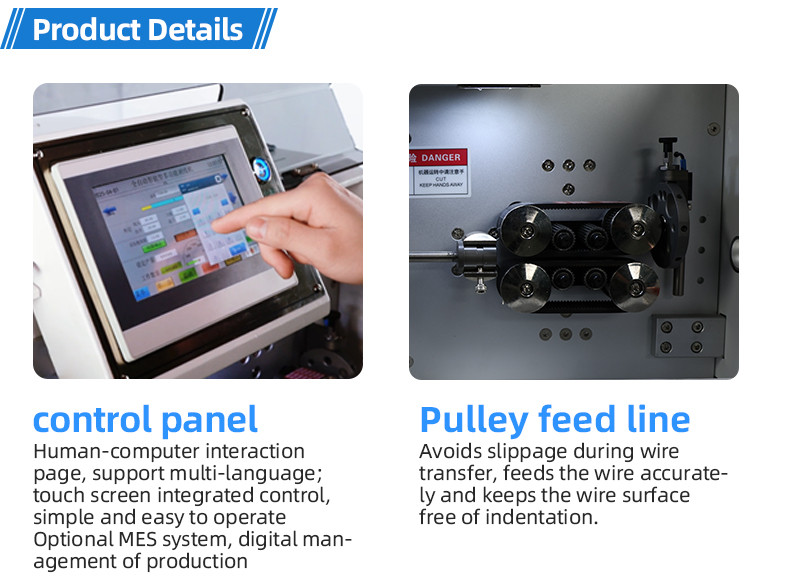

2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.
