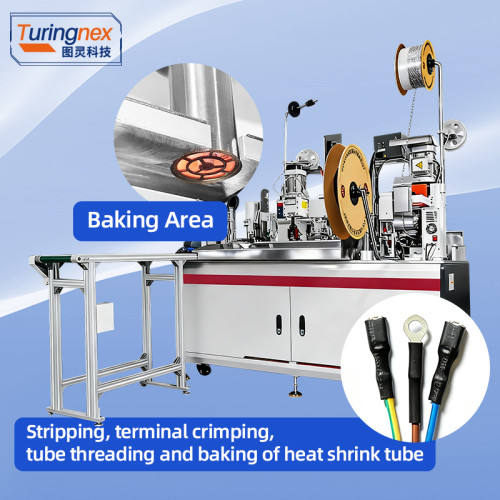

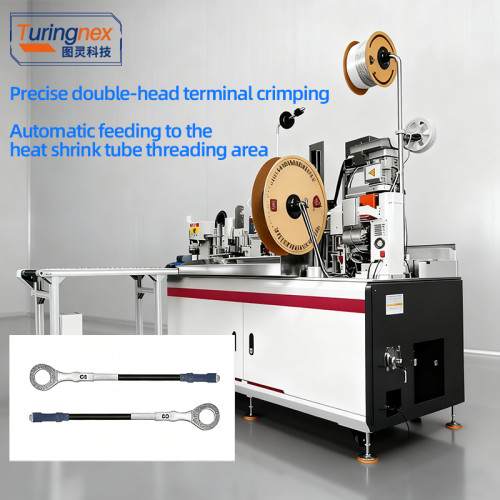

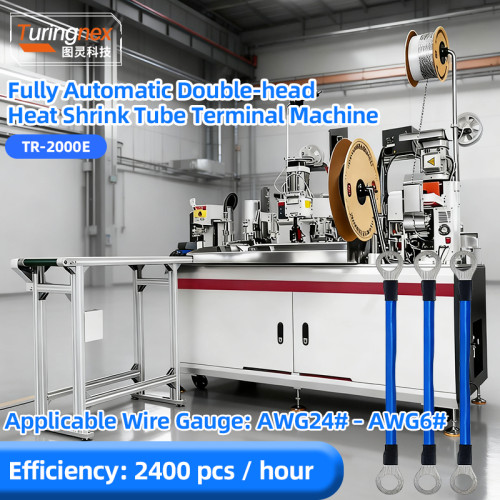

TR-2000E Fully Automatic Double-head Heat Shrink Tube Terminal Machine
- Model
- TR-2000E
Item specifics
- Power
- Single phase AC200V~242V 50/60Hz 10A
- Application
- Wires are cut, stripped at one end, stripped at bo
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco : +86 18666170785
Review
Description
TR-2000E Fully Automatic Double-head Heat Shrink Tube Terminal Machine
Power Supply: AC220V 50/60Hz
Dimensions & Weight: 2000x850x1450mm, 700kg
Processing Range: AWG 24#~AWG6#
Cutting Length: 60-9999mm
Stripping Length: 0-15mm
Tube Threading Length: 15-35mm, φ3.5-9
Air Pressure: 5-7kg (Dry and Clean Air Source)
Production Capacity: 1000-2400 pcs/hour (depending on wire material)
Functions: Wire Cutting, Single/Double-end Stripping, Single/Double-end Crimping, Single/Double-end Tube Threading, Tube Baking

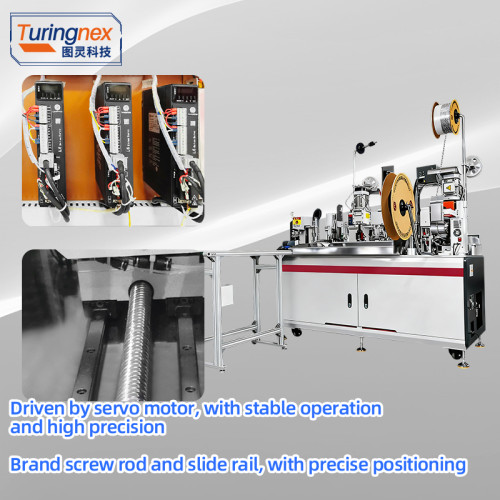

Partial Brands: Hiwin (Taiwan) Ball Screws, Airtac (Taiwan) Cylinder Solenoid Valves, Leadshine Closed-loop + Servo Motors, Hiwin (Taiwan) Linear Guides, Japanese Bearings
