Model
TR-35W

Item specifics

Power
AC220V/50HZ,
operating mode
Touch Screen
power supply
AC220V/DC24V
Warranty
1year
Wire diameter
Ф3mm-25mm

Review

Description

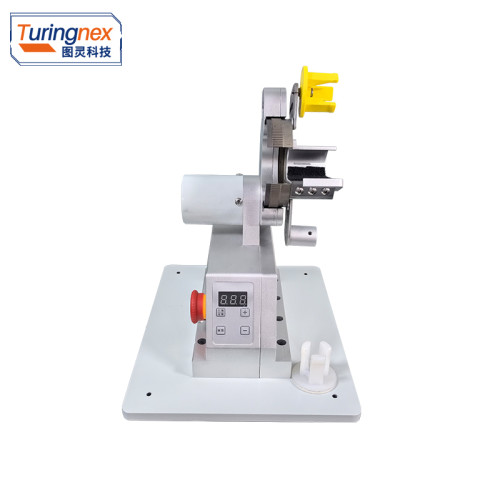

TR-35W Small Tape Winding Machine
Power Supply: 100 - 240V 50/60HZ
Dimension and Weight: 300x250x330mm, 10kg

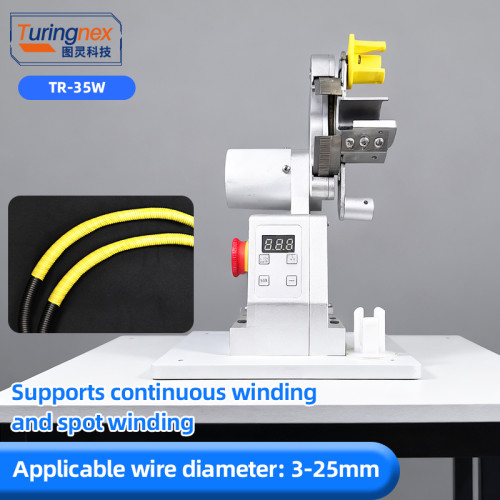

Applicable Wire Diameter: 3 - 25mm
Tape Width: 5 - 25mm
Winding Method: Spiral Winding
Winding Direction: Left and Right
Applicable Tapes: PVC, Vinyl, Flocked Cloth, Cloth - backed Tape, High - temperature Resistant Tape, Ceramic Tape, etc.
Maximum Tape Outer Diameter: 110mm
Tape Inner Diameter: 38mm/32mm (optional), others can be customized
Speed: 1 - 9 Gears
Spot Winding Loops: 1 - 99 Loops

Machine Features:

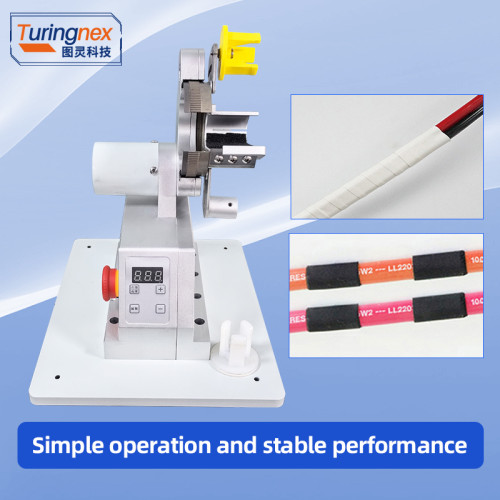

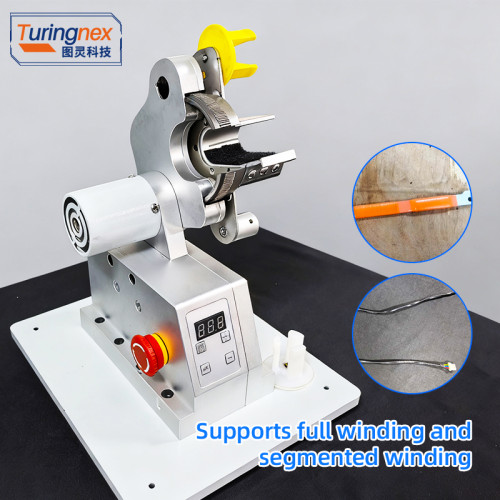

Suitable for winding short wires and multi - branch wires; the machine is compact, flexible and easy to use.
