TR-18 Cold Crimping Terminal Machine
- Model
- TR-18
Item specifics
- Power
- AC220V/50HZ,
- Strip length
- 1-12mm
- Feature
- Stable Performance
- Warranty
- 1year
- Contact
- Coco 0086-18666170785
Review
Description

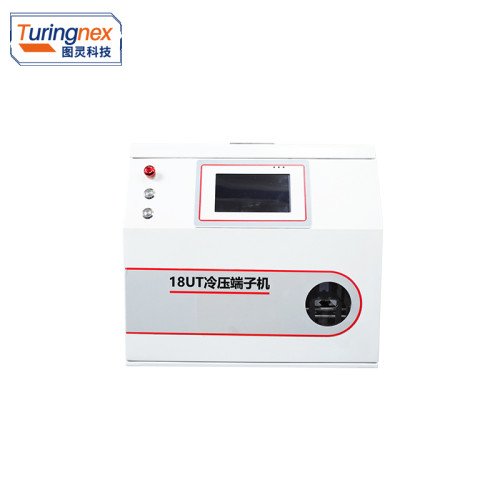

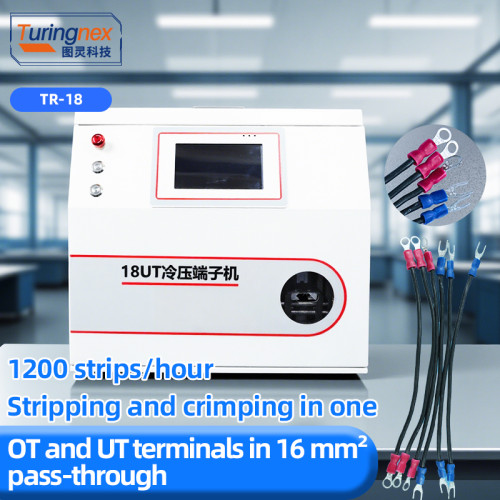

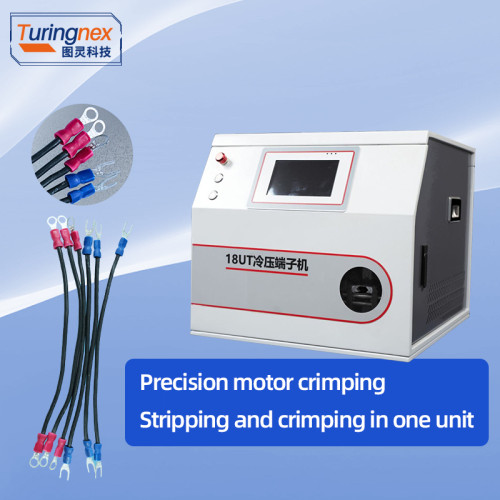

TR-18 OT, UT Cold Crimping Terminal Machine
Power Supply: External Input: AC220V/50Hz (Single-Phase) 10A; Internal Power: DC24V
Wire Gauge Specifications: Customized per sample
Dimensions & Weight: 560x530x490mm, 60kg
Stripping Length: 1-12mm
Operation Mode: Automatic trigger operation and manual operation
Operating Speed: Approximately 1200pcs/H
Control Method: Human-machine interface, electronic control, pneumatic control
Product Changeover: Manual replacement of relevant fixtures, adjustment of vibratory feeder and electric memory for stripping length and depth
Minimum Jacket Stripping Length: 50mm (Special requirements can be accommodated upon sample submission)
Inspection Items: Terminal presence detection, right safety door open detection, pneumatic pressure alarm, etc.
Operating Temperature: 10-25°C
Operating Humidity: 30~80% RH (non-condensing)
Air Supply: 0.6-0.8 MPa (dry, clean air source maintained at ≥0.6 MPa)
