TR-303KL Bilateral Pull Tape Wrapping Machine
- Model
- TR-303KL
Item specifics
- Power
- AC220V/50HZ,
- operating mode
- Touch Screen
- power supply
- AC220V/DC24V
- Warranty
- 1year
- Wire diameter
- Ф3mm-25mm
Review
Description

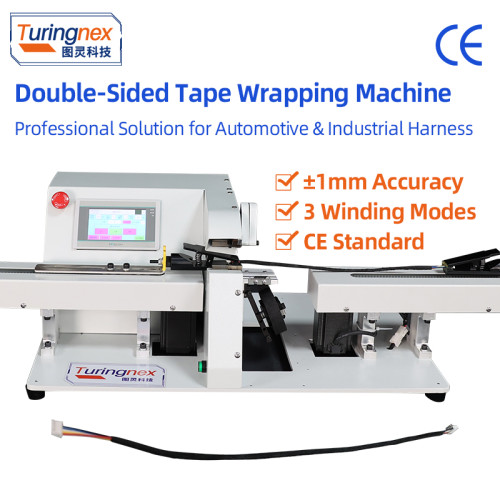

TR-303KL Bilateral Pull Tape Wrapping Machine
Operation mode: touch screen
Winding method: spiral winding
Applicable wire diameter: Ф3mm-25mm
Tape outer diameter: maximum 110mm
Tape width: 9-30mm
Winding length: 1050mm (longer and shorter can be customized)
Packing tape density: can be adjusted by the machine set parameters.
Hole size of the tape: machine with Ф38 (other sizes Ф32, Ф76 ....) (need to inform in advance)
Rotation speed of main machine (rpm): 200-1400 rpm adjustable

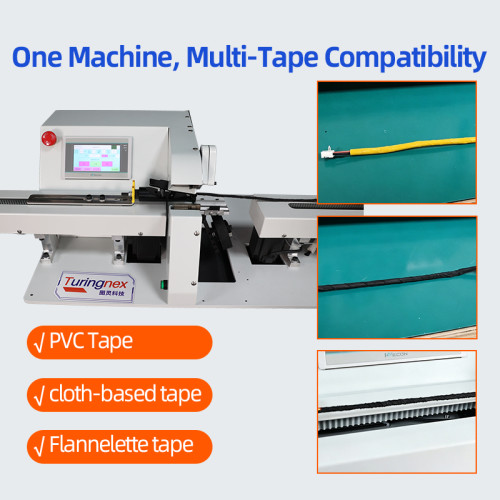

Applicable tape: PVC, cloth velvet, cloth-based tape, high temperature tape, mica tape, ceramic tape, etc.
Voltage: AC220V/DC24V 50/60HZ 110V optional

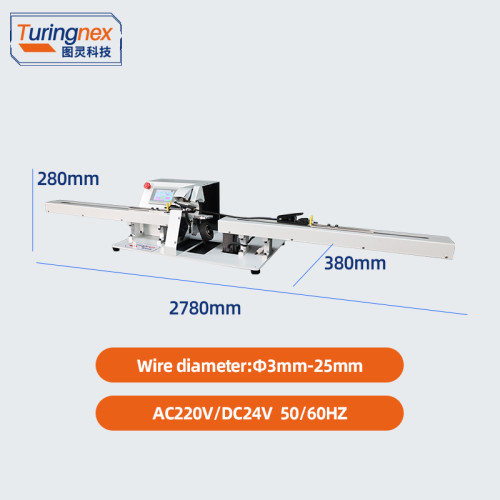

Machine size: 2780mm*380mm*280mm Net weight:48KG
Machine function:

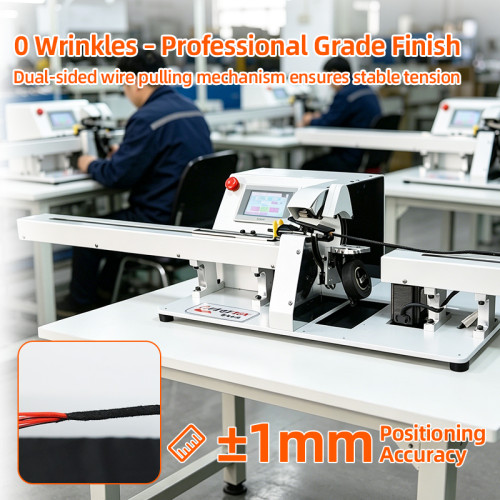

can be full winding, interval winding, point winding, overlap area adjustable. Requirements for the winding length of the tape, winding requirements stay position accuracy can be: ± 1mm.
Trial for: collection of harness, multi-branch, tape winding winding part of the winding length setting, multi-segment requires accurate stay position of the harness.
