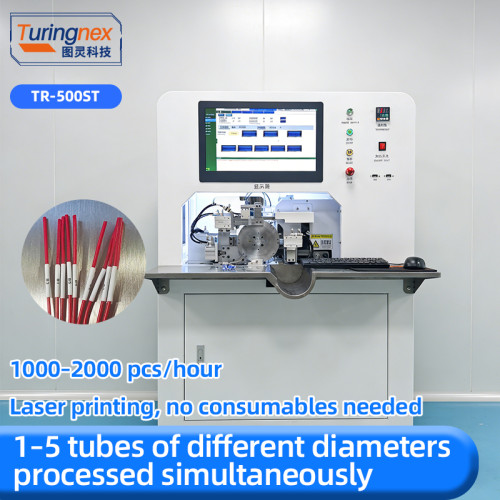

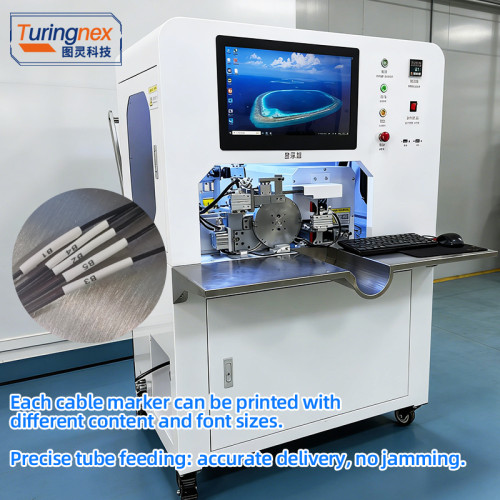

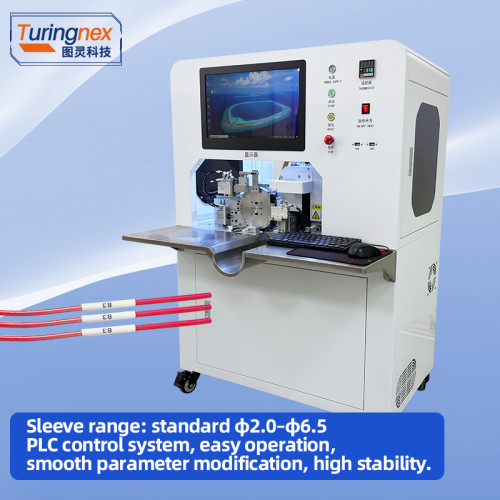

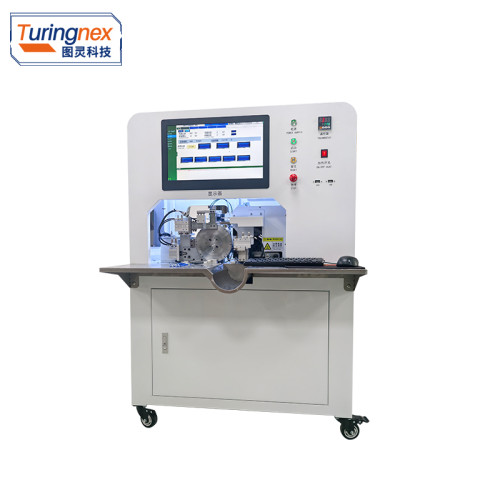

TR-500ST automatic all-in-one laser printing number tube heat shrinkable baking machine
- Model
- TR-500ST
Item specifics
- Power
- AC220V/50HZ,
- Application
- heat shrinkable tube baking machine
- Feature
- Stable Performance
- Warranty
- 1year
- Control
- Servo and Step motor
- Contact
- Coco 0086-18666170785
Review
Description

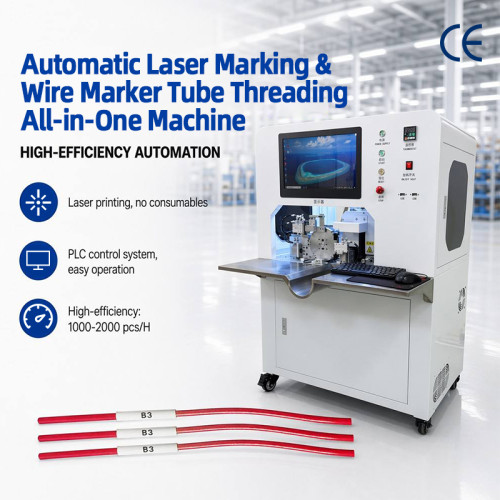

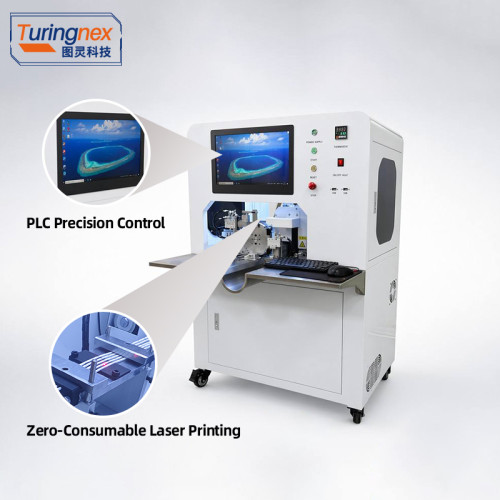

TR-500ST automatic all-in-one laser printing number tube heat shrinkable baking machine
Product Parameters
Equipment name: TR-500ST Laser Printing and Numbering Tube Automation Machine
power supply: AC 220V 50/60Hz
power: 2500W
monitor: 17-inch
Equipment casing baking length: 8mm-45mm (optional jig)
Operating mode: passive
Equipment operating cycle: 2.5 seconds

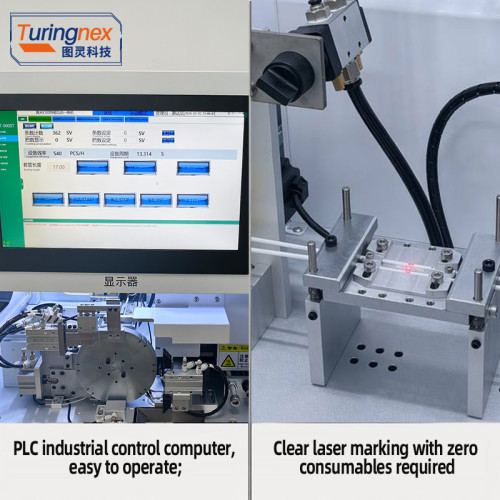

System control mode: PLC/Industrial Control Unit/Upper PC Software

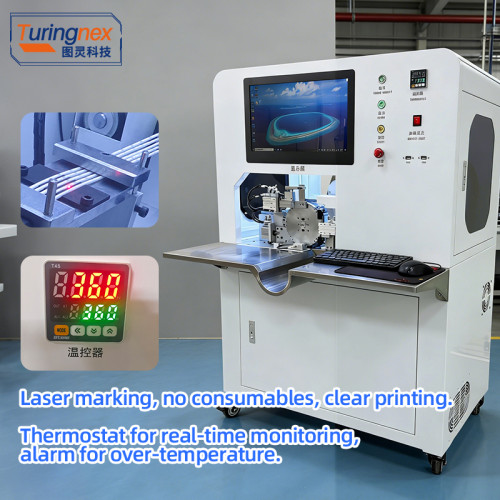

Baking temperature: 0°C-400°C (adjustable by thermostat)

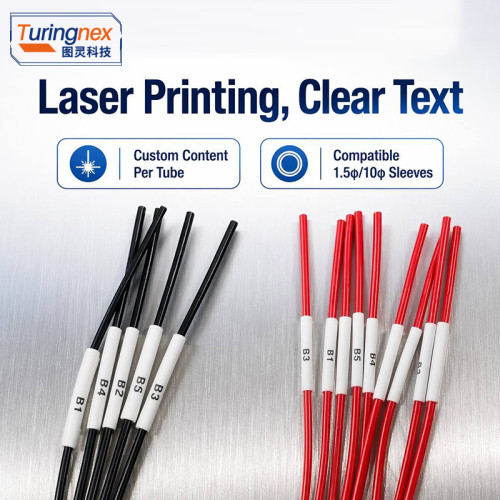

Equipment Casing Compatibility Range: 1.5φ/10φ standard Customizable up to φ12
Air pressure requirements: 0.5/0.65MPa
operating temperature: 0°C-50°C
Storage temperature: -20°C-60°C
Operating humidity: 10%RH~90%RH (no condensation)
anti-interference ability: Interference voltage: 1500Vp-p; pulse period: 1us; duration: 1 minute
atmosphere: No corrosive gases
Cooling method: forced water cooling
Overall dimensions: L900xW550xH1290mm
weight: 165kg
